241/560-K30-MB1-C3 FAG

Name: 241/560-K30-MB1-C3 FAG
Brand: INA
SKU: 241/560-K30-MB1-C3 FAG
Availability: OutOfStock

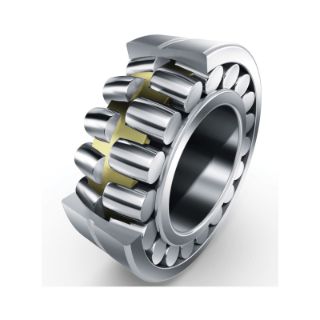

Actual Product May Vary From Image

Product Details

Manufacturer:

INA

Manufacturer part number:

241/560-K30-MB1-C3

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

FAG

Type

Tapered Bore

Description

Spherical roller bearings are a special rolling bearing design whose inner ring runs inside the outer ring on two rows of rollers. The bearings have an angular adjustment of up to 2 deg and are not only designed for high load carrying capacity but can also compensate misalignments.

FAG Spherical Roller Bearing, Tapered Bore, Series: 241, 560 mm Bore, 920 mm OD, 2 Rows, 355 mm Width, Open Closure, Solid Brass Cage, -30 to 200 deg C

Features

Spherical roller bearings are suitable where rearing arrangements are subjected to high and very high radial loads
Relatively high axial loads occur on one or both sides, in addition to high radial forces
Dynamic or static misalignments of the shaft relative to the housing, or deflections of the shaft, must be freely compensated by the bearing
High shock type loads must be supported dynamically
Locating bearings with a very high load carrying capacity are required
1:30 tapered bore
C3 radial internal clearance

Specifications

Bore Diameter:	560 mm
Cage Material:	Solid Brass
Closure Type:	Open
Country of Origin:	DE
Number of Rows:	2
Outside Diameter:	920 mm
Series:	241
Temperature Rating:	-30 to 200 deg C
Width:	355 mm
