244 100/1 B WR 56C HUB

Name: 244 100/1 B WR 56C HUB
SKU: 244 100/1 B WR 56C HUB
Availability: OutOfStock

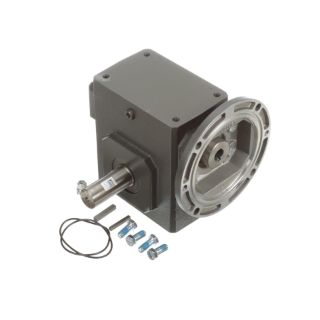

Actual Product May Vary From Image

Product Details

Manufacturer part number:

0230-04722

product.name:

244 100/1 B WR 56C HUB

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style B

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style B, Series: W240PCX, 100:1 Gear Ratio, 0.35 hp Input, C-Face Quill Input, Shaft Output, 5/8 in Dia Input, 1.125 in Dia x 2.66 in L Output, 17.5 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 720 in-lb Output, 2.38 in Centre Distance, 1/4 x 1/8 in Output Keyway, 56.5 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	2.38 in
Efficiency:	56.5 %
Gear Ratio:	100:1
Horsepower:	0.35 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	1/4 x 1/8 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	17.5 rpm
Output Size:	1.125 in Dia x 2.66 in L
Output Type:	Shaft
Series:	W240PCX
Torque Rating:	720 in-lb Output
