Home / 2451 LEV

2451 LEV

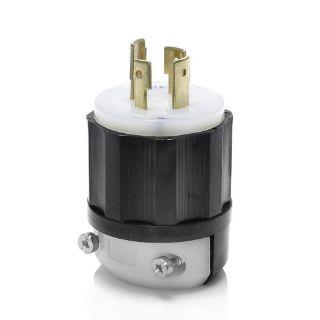

Picture of 2451 LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
2451
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$64.67 / EA

Description

Brand Name

Leviton®

Type

3-Phase Non-Grounding Cable Mount

Description

Leviton® industry leading locking devices, such as our Black & White® line of industrial grade plugs and connectors and receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.
Leviton®, 2451, Locking Plug, 3-Phase Non-Grounding Cable Mount, 277/480 VAC, 20 A, 5 hp, 4 Pole, 4 Wires, NEMA L19-20P NEMA Rating, Industrial Grade, 0.595 to 0.895 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 2.08 Dia x 2.47 in L Dimensions

Application

Industrial Applications

Standards

ANSI C73 | CSA C22.2 No.42 File No. LR406 | NOM 057 | NEMA WD1/WD6 | UL 498 File No. E13393 | Federal Specification WC596 | UL94 V-2 Flammability Rating

Specifications

Amperage Rating:20 A
Color:Black/White
Cord Diameter:0.595 to 0.895 in
Country of Origin:MX
Dimensions:2.08 Dia x 2.47 in L
Grade:Industrial
Horsepower:5 hp
Material:Nylon
NEMA Rating:NEMA L19-20P
Number of Poles:4
Number of Wires:4
Temperature Rating:-40 to 60 deg C
Terminal Type:Screw
Voltage Rating:277/480 VAC
