246 7.5/1 R WR 143TC 1.250 HUB

Name: 246 7.5/1 R WR 143TC 1.250 HUB
Brand: Hub City
SKU: 246 7.5/1 R WR 143TC 1.250 HUB
Availability: OutOfStock

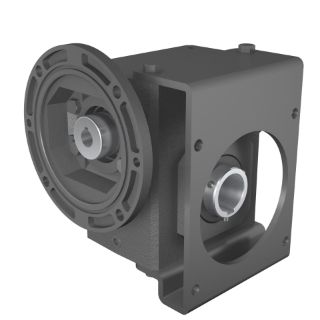

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0230-05540

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style R

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style R, Series: W240PCX, 7.5:1 Gear Ratio, 4.53 hp Input, C-Face Quill Input, Hollow Bore Output, 7/8 in Dia Input, 1-1/4 in Dia Output, 233 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1046 in-lb Output, 2.38 in Centre Distance, 1/4 x 1/8 in Output Keyway, 85.4 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	2.38 in
Efficiency:	85.4 %
Gear Ratio:	7.5:1
Horsepower:	4.53 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	7/8 in Dia
Input Type:	C-Face Quill
Keyway Size:	1/4 x 1/8 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	233 rpm
Output Size:	1-1/4 in Dia
Output Type:	Hollow Bore
Series:	W240PCX
Torque Rating:	1046 in-lb Output
