Actual Product May Vary From Image

248HWP RAC

Name: 248HWP RAC
Brand: Raco Industries
SKU: 248HWP RAC
Availability: OutOfStock

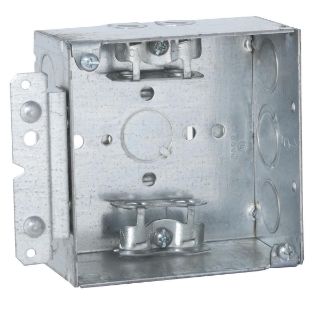

RACO® 248HWP Square Box, Steel, 30.3 cu-in Capacity, 11 Knockouts, 4 in H x 4 in W x 2-1/8 in D

Manufacturer: Raco Industries

Manufacturer part number: 248HWP

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

RACO®

Description

RACO® is the United States' leading manufacturer of steel electrical boxes and covers. RACO® manufactures and/or sells steel and plastic boxes used at outlets, switch locations and junction points. RACO® also offers a broad line of metallic fittings, including rigid plastic conduit fittings, EMT (thin wall) fittings and liquid tight conduit fittings.

RACO® Square Box, 11 Knockouts, 1/2 in Knockout, Squared, 30.3 cu-in, Steel, Pre-Galvanized, Silver, 4 in H x 4 in W x 2-1/8 in D

Application

Electrical, Lighting Fixtures, Switches or Receptacles Applications

Standards

ARRA Compliant | Buy American Act Compliant | UL File No. E195978

Features

Welded construction
Square boxes are used where multiple conductor runs are split into two or more directions to bring power to a number of electrical devices
BOX-LOC (MS) bracket box is a snap to install
Combination cover screw heads provide for faster mudring/cover installation
TKO knockouts offer greater flexibility with RACO® patented combination 1/2 in and 3/4 in knockout
Suitable for use without a bonding jumper in circuits up to 600 volts
Universal box stabilizer bracket
Cable entry: Pryouts for nonmetallic sheathed cable and knockouts for conduit
Patented TKO 1/2 in and 3/4 in eccentric knockouts (Per U.L. 514-A, suitable for use without a bonding jumper in circuits above or below 250 VAC)
Place the bracket on the open side of the stud first
Slots in the bracket engage the lip of the stud and actually crimp it as you press the bracket on the stud, quickly locking it in place

Includes

Universal Box Stabilizer Bracket and Armored Cable/Metal Clad/Flex Clamp

Specifications

Capacity:	30.3 cu-in
Color:	Silver
Country of Origin:	US
Dimensions:	4 in H x 4 in W x 2-1/8 in D
Finish:	Pre-Galvanized
Knockout Size:	1/2 in
Material:	Steel
Number of Knockouts:	11
Shape:	Squared
