Actual Product May Vary From Image

24H200-6FS10 BBM

Name: 24H200-6FS10 BBM
SKU: 24H200-6FS10 BBM
Price: 117.74 USD
Availability: OutOfStock

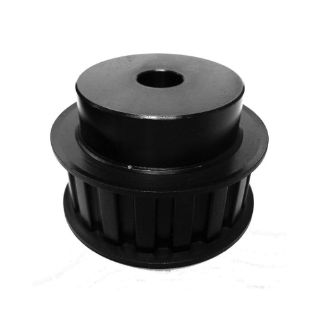

B&B Manufacturing Powerhouse™ 24H200-6FS10 Type 6F Timing Pulley, 1 in Minimum Plain Bore, 3.766 in OD, 24 Grooves, 3.82 in Dia Pitch, 2.344 in W Face

Manufacturer part number: 24H200-6FS10

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

$117.74

Qty:

Product Details

Brand Name

B&B Manufacturing

Type

Type 6F

Description

B&B Manufacturing can produce custom and standard inch (U.S.) timing belt pulleys fast. For custom needs, we can modify any stock timing belt pulleys and we have the engineering and design capabilities to manufacture custom timing belt pulleys to meet your specific needs from scratch.

B&B Manufacturing Powerhouse™ Timing Pulley, Type 6F, Minimum Plain Bore, 1 in Bore Dia, 3.766 in Outside Dia, 3.82 in, 24 Grooves, 1/2 in Pitch, 2.344 in Face Width, 4.05 in Flange Dia, 3 in Hub Dia, MPB Bushing, 3.281 in Overall Length, For Use With: 2 in W Belt, Cast Iron, Black Oxide

Standards

REACH | RoHS Compliant | PROP65: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information: www.P65Warnings.ca.gov

Specifications

Bore Diameter:	1 in
Bore Type:	Minimum Plain
Bushing Type:	MPB
Country of Origin:	US
Face Width:	2.344 in
Finish:	Black Oxide
Flange Diameter:	4.05 in
Hub Diameter:	3 in
Material:	Cast Iron
Number of Grooves:	24
Outside Diameter:	3.766 in
Overall Length:	3.281 in
Pitch:	1/2 in
Pitch Diameter:	3.82 in
Suitable For Use With:	2 in W Belt
