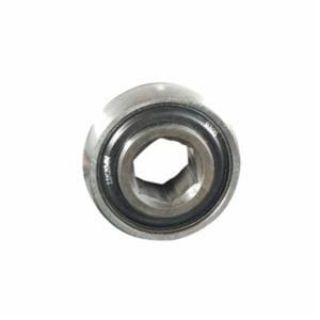

Actual Product May Vary From Image

24KB209N LBB

Name: 24KB209N LBB
Brand: Rexnord
SKU: 24KB209N LBB
Availability: OutOfStock

Link-Belt® 24KB209N 200 Standard Duty Unmounted Hex Bore Ball Bearing, 1-1/2 in Dia Bore, 3.3465 in OD, 0.748 in W, 7370 lb Dynamic/4590 lb Static Load

Manufacturer: Rexnord

Manufacturer part number: 24KB209N

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Link-Belt®

Type

Standard Duty Unmounted

Description

Link-Belt® Hex Bore Ball Bearing, Standard Duty Unmounted, Series: 200, 1-1/2 in Bore Dia, 3.3465 in Outside Dia, 0.748 in Width, 7370 lb Dynamic/4590 lb Static Load, Alloy Steel Bearing, 5330 rpm Maximum, -40 to 225 deg F

Features

Outside diameter of outer ring is cylindrical
Non-relubricatable
Single lip seal
Precision deep groove ball bearings or quality alloy bearing steel provide high capacity and long life

Specifications

Bearing Material:	Alloy Steel
Bore Diameter:	1-1/2 in
Load Capacity:	7370 lb Dynamic/4590 lb Static
Maximum Speed:	5330 rpm
Outside Diameter:	3.3465 in
Series:	200
Temperature Rating:	-40 to 225 deg F
Width:	0.748 in
