24W47 WOO

Name: 24W47 WOO
Brand: Molex (Woodhead)
SKU: 24W47 WOO
Price: 38.18 USD
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex (Woodhead)

Manufacturer part number:

24W47

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 12 days

Estimated dates are contingent upon manufacturer stock.

$38.18 / EA

Description

Brand Name

Woodhead®

Description

Woodhead Watertite wet-location wiring devices are rated for high pressure hose-down application up to 1,000 psi, the benchmark for the industry. The only devices made of NEoTEX® Paracril OZO rubber, yields ultimate performance within a wide temperature range, around many oils, chemicals and abrasive conditions. Additional features include: unique multiple ring seals that lock snugly protecting against moisture and contaminants; sturdy compression type cord grips that provide 93.0kg (205 lbs) of pull-out strength; and a protective-closure cap that seals the connector when it is not in use. Woodhead Watertite products are time-tested devices that professionals demand.

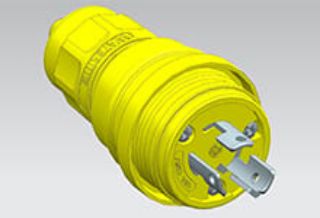

Woodhead®, 24W47, Locking Blade Plug, Series: 130146, 125 V, 15 A, 2 Pole, 3 Wires, L5-15 NEMA Rating, Industrial Grade, NEMA 1/3/4/4X/5/6/6P/12/IP69K Enclosure, 0.125 to 0.187 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Rubber, Yellow

Application

For wet location

Standards

CSA LR6837 | NSF/ANSI/3-A 14159-1 | UL E10176

Features

Multiple seal plug/connector interface keeps out contaminants resists vapor and water from highpressure wash down up to 1000 psi
Color-coded 1/4 in terminal screws pre-set in open position, ready to wire
Wire screw terminals are tri-drive to be used with straight blade, phillips and square-drive screw drivers
Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strands are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
Three piece strain relief seals cord without damaging the cord
NEoTEX® Paracril OZO rubber outer housing and grommet
Nickel-plated brass plug blades and connector contacts
Stainless steel face screws
Nylon face insert
Brass wire saddle clamp
Lexan receptacle cover plate and closure caps
F2 1/2 in cord grip body size
Male plug

Specifications

Amperage Rating:	15 A
Color:	Yellow
Cord Diameter:	0.125 to 0.187 in
Country of Origin:	MX
Enclosure:	NEMA 1/3/4/4X/5/6/6P/12/IP69K
Grade:	Industrial
Material:	Rubber
NEMA Rating:	L5-15
Number of Poles:	2
Number of Wires:	3
Series:	130146
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	125 V
