24XH200SF BRN

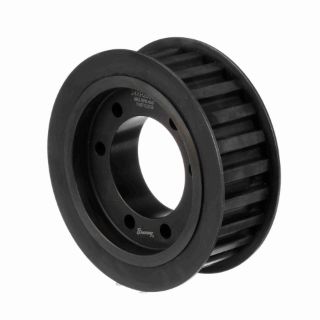

Picture of 24XH200SF BRN
Actual Product May Vary From Image

Product Details

Manufacturer:
Regal Rexnord
Manufacturer part number:
3514494
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$677.82 / EA

Description

Brand Name

Browning®

Type

Solid Type DF

Description

Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.
Browning® Gearbelt® Synchronous Timing Pulley, Solid Type DF, QD® Bore, 1/2 to 2-15/16 in Bore Dia, 6.575 in Outside Dia, 6.685 in, 24 Grooves, 7/8 in Pitch, 2-9/16 in Face Width, 7-1/4 in Flange Dia, SF Bushing, 2-13/16 in Overall Length, For Use With: 2 in W Type XH200 Belt

Application

Agriculture, Forestry, Packaging Machinery and Unit Handling Industries

Features

  • High modulus strength member, needs minimum take-up
  • Freedom from initial belt tension, reduces bearing loads, increases life
  • Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
  • Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
  • Less heat, because Gearbelt® drives generate virtually no friction
  • No lubrication required
  • Wide load capacity range
  • Wide belt speed range
  • Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
  • Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore

Specifications

Bore Diameter:1/2 to 2-15/16 in
Bore Type:QD®
Bushing Type:SF
Country of Origin:US
Face Width:2-9/16 in
Flange Diameter:7-1/4 in
Number of Grooves:24
Outside Diameter:6.575 in
Overall Length:2-13/16 in
Pitch:7/8 in
Pitch Diameter:6.685 in
Suitable For Use With:2 in W Type XH200 Belt
