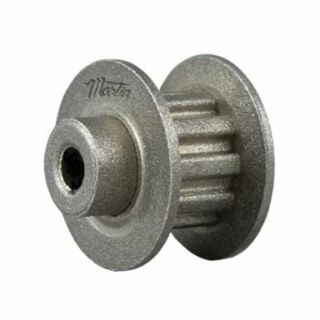

24XL037 MSG

Product Details

Manufacturer part number:
24XL037
product.name:
24XL037 MSG
CBT Inventory
1
Vendor Inventory
Loading...
CBT - Cincinnati
1
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
$29.88 / EA

Description

Brand Name

Martin

Type

Solid Type DF-1

Description

Martin timing pulleys are manufactured to extremely close specifications and are stocked in minimum plain bore, taper bushed, QD bushed styles depending on size and pitch. Synchronous sprockets are non-slip toothed drives that require no lubrication. These sprockets have a wide speed range, are very efficient and make less noise than chain drives. Teeth on the belts are molded to conform with and engage the teeth on a mating sprocket.
Martin Stock Timing Pulley, Solid Type DF-1, Minimum Plain/Reborable Bore, 0.25 to 0.813 in Bore Dia, 1.508 in Outside Dia, 1.528 in, 24 Grooves, 0.2 in Pitch, 0.563 in Face Width, 1.756 in Flange Dia, 1-1/16 in Hub Dia, 5/16 in Hub Projection, 7/8 in Overall Length, For Use With: Type XL Belt, Steel

Features

  • Exhibit many of the best features of chain drives and belt drives
  • Non-slip toothed drive with no metal to metal contact
  • No lubrication needed
  • Precise machining and processes ensure consistent finish and high quality

Specifications

Bore Diameter:0.25 to 0.813 in
Bore Type:Minimum Plain/Reborable
Country of Origin:US
Face Width:0.563 in
Flange Diameter:1.756 in
Hub Diameter:1-1/16 in
Hub Projection:5/16 in
Material:Steel
Number of Grooves:24
Outside Diameter:1.508 in
Overall Length:7/8 in
Pitch:0.2 in
Pitch Diameter:1.528 in
Suitable For Use With:Type XL Belt

Products Specifications

Belt Width
3/8"
Bore Diameter
1/4"
Brand Name
Martin Sprocket & Gear
Number of Teeth
24
Pitch Diameter
1.528 in
