24XXH500F BRN

Name: 24XXH500F BRN
Brand: Regal Rexnord
SKU: 24XXH500F BRN
Availability: OutOfStock

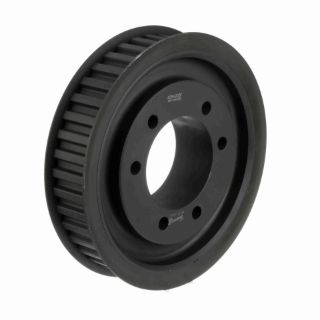

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

3515384

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Browning®

Type

Type AF Web

Description

Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.

Browning® Gearbelt® Synchronous Timing Pulley, Type AF Web, QD® Bore, 1 to 4 in Bore Dia, 9.429 in Outside Dia, 9.549 in, 24 Grooves, 1-1/4 in Pitch, 5-13/16 in Face Width, 10-5/16 in Flange Dia, F Bushing, 6-3/32 in Overall Length, For Use With: 5 in W Type XXH500 Belt

Application

Agriculture, Forestry, Packaging Machinery and Unit Handling Industries

Features

Constant speed, no slip, no creep, minimum backlash, because of the positive grip of the belt teeth with pulley grooves
High modulus strength member, needs minimum take-up
Freedom from initial belt tension, reduces bearing loads, increases life
Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
Less heat, because Gearbelt® drives generate virtually no friction
No lubrication required
Wide load capacity range
Wide belt speed range

Specifications

Bore Diameter:	1 to 4 in
Bore Type:	QD®
Bushing Type:	F
Country of Origin:	US
Face Width:	5-13/16 in
Flange Diameter:	10-5/16 in
Number of Grooves:	24
Outside Diameter:	9.429 in
Overall Length:	6-3/32 in
Pitch:	1-1/4 in
Pitch Diameter:	9.549 in
Suitable For Use With:	5 in W Type XXH500 Belt
