2517 2 1/4 MSG

Name: 2517 2 1/4 MSG
Brand: Martin Sprocket & Gear
SKU: 2517 2 1/4 MSG
Price: 41.02 USD
Availability: InStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Martin Sprocket & Gear

Manufacturer part number:

2517 2 1/4

product.name:

2517 2 1/4 MSG

CBT Inventory

Vendor Inventory

Availability:

Ships in 2-4 days.

Estimated dates are contingent upon manufacturer stock.

$41.02 / EA

Description

Brand Name

Martin

Type

Standard

Description

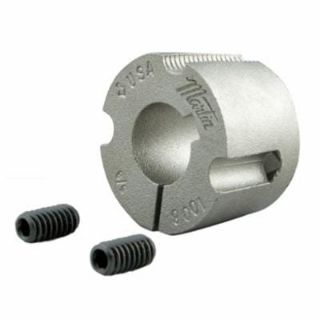

Martin Taper Lock Bushing, Standard, 2-1/4 in Bore Dia, 3-3/8 in Barrel Dia, 4-3/8 in Hub Dia, 8 deg Taper, 3-1/4 in Bolt Circle, 2 Bolt Holes, 1/2-13 x 1 in Screw, 11600 in-lb, 1-3/4 in Overall Length, 1/2 x 1/4 in Keyway, Steel

Standards

ANSI B15.1

Features

Size 2517 bushing
TB Bushings are designed for flush mounting and do not have a flange
Tolerances meet or exceed industry standards
Precise machining and processes ensure consistent finish and high quality
Interchangeable with other manufacturersâ€™ taper bushings

Specifications

Barrel Diameter:	3-3/8 in
Bolt Circle Diameter:	3-1/4 in
Bore Diameter:	2-1/4 in
Country of Origin:	US
Hub Diameter:	4-3/8 in
Keyway Size:	1/2 x 1/4 in
Material:	Steel
Number of Bolt Holes:	2
Overall Length:	1-3/4 in
Screw Size:	1/2-13 x 1 in
Taper:	8 deg
Torque Rating:	11600 in-lb
