2517 38MM AD

Name: 2517 38MM AD
Brand: IDC-USA
SKU: 2517 38MM AD
Price: 34.18 USD
Availability: InStock

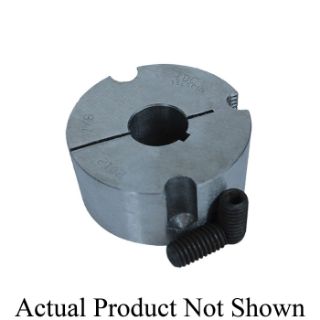

Actual Product May Vary From Image

Product Details

Manufacturer:

IDC-USA

Manufacturer part number:

IDC 2517-38MM

product.name:

2517 38MM AD

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

$34.18 / EA

Description

Brand Name

IDC Select®

Type

Finished Bore

Description

IDC Select® bushings are available in H, QD®, Taper-Lock®, and Split Taper™ designs and are available in inch and metric sizes. They are stocked in popular finished bore sizes. All IDC Select® bushings are fully interchangeable with industry standard design.

IDC Select® Taper-Lock® Bushing, Finished Bore, 38 mm Bore Dia, 3-3/8 in Barrel Dia, 8 deg Taper, 3-1/4 in Bolt Circle, 1/2-13 UNC Screw, 48 N/sq-m, 1-3/4 in Overall Length, 10 x 3.3 mm Keyway, Nodular Graphite Cast Iron

Application

Air Handling, Mining, Wood Process, Agriculture, Aggregate, Oilfield, Air Compressor and Standard Industrial Applications

Standards

ANSI Specified | ASTM A536/A536-84 | SAE Standard

Features

Flush mount - clean and compact
Easy installation and dismount
8 deg taper - fits equivalent to shrink fit
Globally accepted
Keystock provided with shallow key sizes
2517 Taper-Lock® bushing

Includes

1/4 in Hex Setscrew

Specifications

Barrel Diameter:	3-3/8 in
Bolt Circle Diameter:	3-1/4 in
Bore Diameter:	38 mm
Keyway Size:	10 x 3.3 mm
Material:	Nodular Graphite Cast Iron
Overall Length:	1-3/4 in
Screw Size:	1/2-13 UNC
Taper:	8 deg
Torque Rating:	48 N/sq-m
