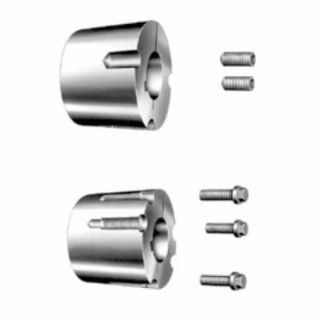

2517 55MM GAT

Picture of 2517 55MM GAT
Actual Product May Vary From Image

Product Details

Manufacturer:
Gates Corporation
Manufacturer part number:
2517 55MM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$57.82 / EA

Description

Brand Name

Gates®

Type

Finished Bore

Description

Taper-Lock® bushings are flangeless for clean, compact application. They are engineered with an 8° taper and a flush-mounted design with no protruding parts providing secure locking and elimination of wobble.
Gates® Taper Lock Bushing, Finished Bore, 55 mm Bore Dia, 3-3/8 in Barrel Dia, 4.88 in Hub Dia, 8 deg Taper, 3-1/4 in Bolt Circle, 2 Bolt Holes, 1/2-13 x 1 in Screw, 11600 in-lb, For Use With: Taper Lock Style Sheaves, Sprockets and Pulleys, 1-3/4 in Overall Length, 16 x 4.3 mm Keyway, Cast Iron

Features

  • Size 2517 bushing
  • Bushings are made to precise tolerances

Specifications

Barrel Diameter:3-3/8 in
Bolt Circle Diameter:3-1/4 in
Bore Diameter:55 mm
Country of Origin:US
Hub Diameter:4.88 in
Keyway Size:16 x 4.3 mm
Material:Cast Iron
Number of Bolt Holes:2
Overall Length:1-3/4 in
Screw Size:1/2-13 x 1 in
Suitable For Use With:Taper Lock Style Sheaves, Sprockets and Pulleys
Taper:8 deg
Torque Rating:11600 in-lb

Products Specifications

Brand Name
Gates
