25B12 BRN

Name: 25B12 BRN
Brand: Regal Rexnord
SKU: 25B12 BRN
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Regal Rexnord

Manufacturer part number:

1121284

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Browning®

Type

Single Strand Minimum Bore Type B

Description

Browning®Type B minimum bore sprockets are offered in single, double and triple strands. Offerings include 25 to 200 pitch range. Minimum bore sprockets are available in bore ranges from 1/4 to 8-3/8 in.

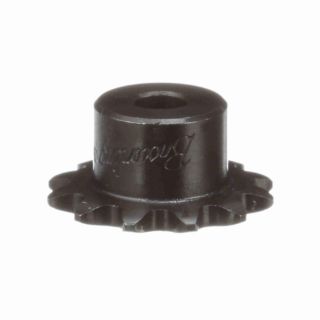

Browning® Roller Chain Sprocket, Single Strand Minimum Bore Type B, 1/4 in Bore Dia, 1.08 in Outside Dia, #25 Chain, 12 Teeth, 1/4 in Pitch, 0.966 in, 5/8 in Hub Dia, 1/2 in Length Through Bore, Steel

Application

Aggregate, Cement, Agriculture, Forestry, Minerals, Mining, Pulp and Paper Industries

Standards

ANSI Specified

Features

Larger hub diameter allows larger bore capacity
Lasts longer than sprockets made from low carbon steel
For use with 1/4 in pitch ANSI chain
Browning offers one of the largest selection of application shaft ready sprockets in the industry
Made with Minimum bore, no keyseat or setscrew
This can be bored to size with keyseat and setscrew for a reasonable extra charge
Maximum Bore Shown will accommodate standard keyways and setscrews over keyway
Slightly larger bores are possible with no keyway, shallow keyway or setscrew at angle to keyway

Specifications

Bore Diameter:	1/4 in
Chain Size:	#25
Country of Origin:	CN
Hub Diameter:	5/8 in
Length Through Bore:	1/2 in
Material:	Steel
Number of Teeth:	12
Outside Diameter:	1.08 in
Pitch:	1/4 in
Pitch Diameter:	0.966 in
