25BD024N104 AB

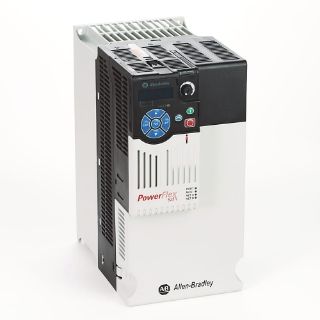

Picture of 25BD024N104 AB
Actual Product May Vary From Image

Product Details

Manufacturer:
Allen-Bradley
Manufacturer part number:
25B-D024N104
CBT Inventory
15
Vendor Inventory
Please login to see accurate availability
CBT - Cincinnati
8
CBT - Springboro
1
CBT - Sidney
6
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,174.70 / EA
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Type

AC Drive

Description

AC Drive,11 kW (15 HP),480V AC Input,3 PH,50 60 Hz,24 A Output,IP20,UL NEMA Type Open,Panel Mounting,With Brake IGBT, V PerHz Sensorless Vector Closed Loop Vector Perm Magnet Motor Control,Safe Torque Off PID SIL2 Cat 3,Safe Torque,Off PID,SIL2 Cat 3, Fr

Standards

C-TICK, CCC, CE, CUL, GOST, KC, MARINE, UL

Specifications

Brake IGBT:Included
Connection:Fixed Terminal Block
Control:EtherNet IP-USB-RS485
Country of Origin:MUL
Display:LED Display
Enclosure:IP20,UL-NEMA Type Open
Frame Size:Frame D
Frequency Rating:50-60
Input Voltage Rating:480V AC
Mounting:Panel Mount
Output Current Rating:24 A
Power Factor:0.98
Power Rating:11 kW (15 Hp)
Size:Frame D
User Interface:Integral Keypad &Potentiometer

Resources

Spec Sheet

Products Specifications

Brand Name
Allen-Bradley
Horsepower
15 HP
Output
24 Amps
Phase
3
Type
AC Drive
Voltage Rating
480 VAC
