25BE1P7N104 AB

Product Details

Manufacturer:
Manufacturer part number:
25B-E1P7N104
CBT Inventory
2
Vendor Inventory
Please login to see accurate availability
CBT - Cincinnati
2
CBT - Springboro
0
CBT - Sidney
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Estimated dates are contingent upon manufacturer stock.
You do not meet the requirements to purchase this product. Please contact your sales person.

Description

Type

AC Drive

Description

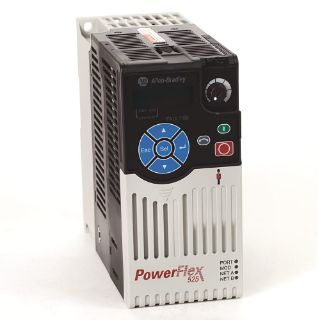

AC Drive,0.75kW (1 HP),600V AC Input,3 PH,50 60 Hz,1.7 A Output,IP20,UL NEMA Type Open,Panel Mounting,With Brake IGBT, V PerHz Sensorless Vector Closed Loop Vector Perm Magnet Motor Control,Safe Torque Off PID SIL2 Cat 3,Safe Torque,Off PID,SIL2 Cat 3, F

Standards

C-TICK, CE, CUL, GOST, KC, MARINE, UL

Specifications

Brake IGBT:Included
Connection:Fixed Terminal Block
Control:EtherNet IP-USB-RS485
Country of Origin:MUL
Display:LED Display
Enclosure:IP20,UL-NEMA Type Open
Frame Size:Frame A
Frequency Rating:50-60
Input Voltage Rating:600V AC
Mounting:Panel Mount
Output Current Rating:1.7 A
Power Factor:0.98
Power Rating:0.75 kW (1 Hp)
Size:Frame A
User Interface:Integral Keypad &Potentiometer

Resources

Products Specifications

Brand Name
Allen-Bradley
Horsepower
1 HP
Output
1.7 Amps
Phase
3
Type
AC Drive
Voltage Rating
600 VAC
