25H07-660 BSF

Name: 25H07-660 BSF
Brand: Bussmann
SKU: 25H07-660 BSF
Price: 140.66 USD
Availability: OutOfStock

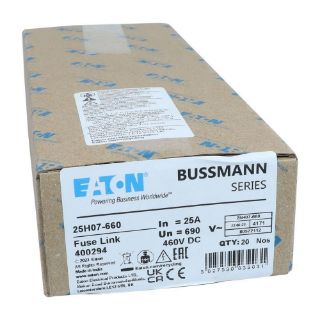

Actual Product May Vary From Image

Product Details

Manufacturer:

Bussmann

Manufacturer part number:

25H07-660

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 41 days

Estimated dates are contingent upon manufacturer stock.

$140.66 / EA

Description

Brand Name

Bussmann

Type

HRC Industrial Low Voltage British standard

Description

Eaton's Bussmann British standard fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current, voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Bussmann Fuse, HRC Industrial Low Voltage British standard, Series: H07-660, 25 A, 660 VAC/250 VDC, 80 kAIC Interrupt, Class: GL/GG/C, Bolted-Down Terminal, Stud Mount, Cartridge Body, 22 mm Dia x 82.3 mm L Body Size

Application

Industrial Facilities and Factory Facilities, Safety and Security Systems, Power Distribution and Control, For protection of large industrial installations up to 690 VAC Applications

Standards

BS88-2 | IEC 60269-2

Features

Good peak let-through current limitation
1:1:6 selective co-ordination ratio between "minor" and "major" fuse
GG characteristics for cable protection and general purpose applications
Power loss values well within the limits of IEC 60269

Specifications

Amperage Rating:	25 A
Body Size:	22 mm Dia x 82.3 mm L
Body Type:	Cartridge
Class:	GL/GG/C
Interrupt Rating:	80 kAIC
Mounting Type:	Stud
Series:	H07-660
Terminal Type:	Bolted-Down
Voltage Rating:	660 VAC/250 VDC
