25NHG000B BSF

Name: 25NHG000B BSF
Brand: Bussmann
SKU: 25NHG000B BSF
Availability: OutOfStock

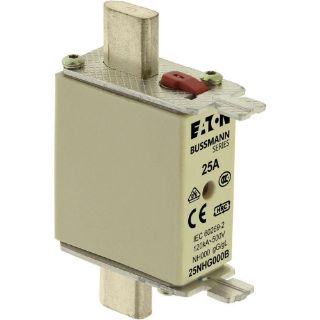

Bussmann 25NHG000B Size 000 Class gG/gL Dual Indicator NH Fuse Link With Metal Gripping Lugs, 500 V, 25 A, For Use With Bussmann NH Size Photovoltaic Fuse, Ceramic

Manufacturer: Bussmann

Manufacturer part number: 25NHG000B

Availability: Expected Leadtime 30 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

Size 000 Class gG/gL Dual Indicator

Description

Eaton's Bussmann series low voltage NH fuses range from 2 amps to 1250 amps and provide world class leading performance and reliability. The range is fully compliant with IEC 60269-1, 60269-2, VDE 0636-2 third party approval and DIN 43620. Incorporating a dual indicator design (front and top) NH fuses are able to give both local visual indication and remote (via microswitch) fuse status. Eaton's Bussmann series NH fuses are available in the following operating classes gg, gff and am.

Bussmann NH Fuse Link, Size 000 Class gG/gL Dual Indicator, 500 V, 25 A, 47/63 Hz, Rated Breaking Capacity: 120 kA, Holder Mount, For Use With: Bussmann NH Size Photovoltaic Fuse, Ceramic, 78.5 mm L x 21 mm W

Application

Aftermarket, Control Panels for Machines, Panel Builders, OEMs, Electrical Assemblies, Panels, Power Distribution and Control, Industrial Applications, Safety and Security Systems

Standards

Features

Eaton's Bussmann series 500 VAC NH square bodied industrial fuse links are suitable for a wide variety of applications
Reliable dual indicator system
Low temperature rise
Steatite insulator, corrosion proof (aluminum) metal parts with full contact, silver plated copper blade construction

Specifications

Amperage Rating:	25 A
Country of Origin:	IN
Dimensions:	78.5 mm L x 21 mm W
Frequency Rating:	45 to 62 Hz
Material:	Ceramic
Mounting Type:	Holder
Rated Breaking Capacity:	120 kA
Series:	NHG
Suitable For Use With:	Bussmann NH Size Photovoltaic Fuse
Voltage Rating:	500 V
