25TPMOVSL320D FER

Name: 25TPMOVSL320D FER
Brand: Mersen
SKU: 25TPMOVSL320D FER
Price: 24.50 USD
Availability: OutOfStock

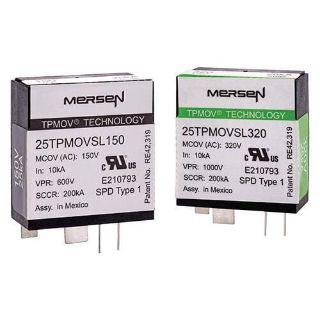

Actual Product May Vary From Image

Product Details

Manufacturer:

Mersen

Manufacturer part number:

25TPMOVSL320D

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$24.50 / EA

Description

Brand Name

Mersen

Type

Type 1

Description

Mersen, 25TPMOVSL320D, AC Surge Protective Device, Type 1, Series: TPMOV, 320 VAC Electrical Rating, 50, 60 Hz Frequency, 200 kA Short Circuit, 25 kA Peak Surge Current, 10 kA Nominal Discharge, 25 ns Response, Microswitch Indicator, Environmental Conditions: -40 to 85 deg C Operating/Storage, Thermoplastic Enclosure, PCB Mounting, PET (Polyethelene Terphthalate), 1.19 in L x 0.54 in W x 1.28 in H Dimensions

Application

For use in all types of SPD applications

Standards

ANSI/UL 1449 4th Edition, Type 1 Component Assembly SPD, File E210793 | RoHS Compliant

Features

Mersenâ€™s patented TPMOV technology eliminates common failure modes that occur in the field with standard metal oxide varistors
Internally the TPMOV is comprised of a voltage clamping device and a disconnecting apparatus that monitors the status of the metal oxide disc making the TPMOV a fail-safe device
Industry-leading, patented, TPMOV Technology
Now available in a standard 25mm MOV footprint
Upstream overcurrent protection not required
Built-in end-of-life indication

Specifications

Country of Origin:	MX
Dimensions:	1.19 in L x 0.54 in W x 1.28 in H
Electrical Ratings:	320 VAC
Enclosure Type:	Thermoplastic
Environmental Conditions:	-40 to 85 deg C Operating/Storage
Frequency Rating:	50, 60 Hz
Indicator Type:	Microswitch
Material:	PET (Polyethelene Terphthalate.
Mounting Type:	PCB
Nominal Discharge Current:	10 kA
Peak Surge Current:	25 kA
Response Time:	25 ns
Series:	TPMOV
Short Circuit Current Rating:	200 kA
