25W34H HWD

Product Details

Manufacturer part number:
25W34H
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Elastomeric Grounding Standard Watertight

Alternate Supplier #

Grainger - 5RVX9

Description

When it comes to safety, most everyone knows that water and electricity can create a dangerous environment. From harsh factory and construction sites to laboratories and outdoor applications, ensuring a watertight seal for electrical devices is critical to ensuring maximum safety of personnel in any wet environment. Hubbell® watertight Twist-Lock® devices have become the industry standard for maintaining a watertight seal when in use and when disconnected as well as preventing unintentional disconnects.

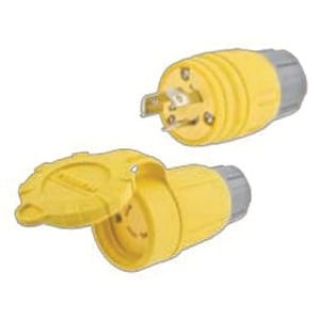

Wiring Device-Kellems Twist-Lock® Safety-Shroud® Locking Connector, Elastomeric Grounding Standard Watertight, 277 VAC, 15 A, 2 Pole, 3 Wires, NEMA L7-15R, Marine Grade, IP65/IP66/IP67 Enclosure, 0.3 to 6.25 in Cord Dia, -40 to 75 deg C, Screw Terminal, Composite/Thermoplastic Elastomer, Yellow

Application

Heavy Duty Industrial Applications

Standards

CSA Certified | UL 498 | NEMA WD1/ WD5

Features

  • Double insulated elastomeric cover and thermoplastic body for extra safety and water resistance
  • Exclusive triple by-pass sealing system
  • Corrosion-resistant nickel plated blades and stainless steel captive assembly screws
  • Cord mounted
  • Insulated body
  • 14 to 12 AWG conductor size
  • Standard size product

Specifications

Amperage Rating:15 A
Color:Yellow
Cord Diameter:0.3 to 6.25 in
Country of Origin:US
Enclosure:IP65/IP66/IP67
Grade:Marine
Material:Composite/Thermoplastic Elastomer
NEMA Rating:NEMA L7-15R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Screw
Voltage Rating:277 VAC
