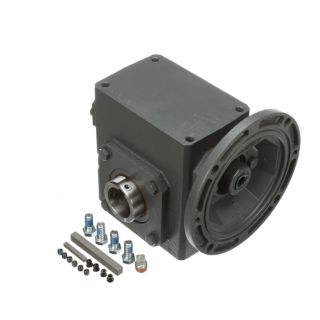

Actual Product May Vary From Image

262Q56H50 108 MOR

Name: 262Q56H50 108 MOR
Brand: Regal Rexnord
SKU: 262Q56H50 108 MOR
Availability: OutOfStock

Morse® Raider® Plus XG1442 Single Reduction Standard Worm Gear Reducer, C-Face Quilled Input, Hollow Output, 1 hp, 50:1 Gear Ratio, 35 rpm Maximum Output, 51.14 in-lb Input/35 in-lb Output Torque Rating

Manufacturer: Regal Rexnord

Manufacturer part number: XG1442

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Morse®

Type

Single Reduction Standard

Description

Raider® Plus worm gear reducers represent the most flexible worm gear product in the power transmission solutions portfolio. With a large variety of add-on accessories, the Raider® Plus line of worm gear reducers is a problem solver. Four unit styles form the basis of this vast product offering. These are the universal style ("U" style, shaft input) with an output shaft and the C-face style ("Q" style, input quill) with an output shaft. Both the "U" and "Q" styles are also available with hollow outputs. The Raider® Plus worm gear reducer is designed as an industry interchange. It is dimensionally interchangeable with the major industry competitors.

Morse® Raider® Plus Worm Gear Reducer, Single Reduction Standard, 50:1 Gear Ratio, 1 hp, C-Face Quilled Input, Hollow Output, 0.63 in Dia Input, 1-1/2 in ID Output, 35 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 51.14 in-lb Input/35 in-lb Output, 2.62 in Centre Distance, 3/16 x 3/32 in Input/3/8 x 3 in Output Keyway, 80 % Efficiency, Polyglycol Oil Lubrication, Direct/Floor Mount, Cast Iron, 9.53 in L x 7 in W x 8 in H

Application

Food Industry, Lumber Industry, Paper Mills, Rubber Industry and Textile Industries

Standards

FDA Approved

Features

Rugged cast iron housing provides maximum strength and dependability
High lead angle worm is case hardened, ground and polished
Large, single row ball bearings on input shaft to absorb radial and thrust loads at higher input speeds
Tapered roller bearings are used on output shaft
Forged bronze worm gears provide optimum balance of strength and wear
Heavy duty tapered roller bearings on all output shafts
56C motor frame size

Specifications

Centre Distance:	2.62 in
Country of Origin:	US
Dimensions:	9.53 in L x 7 in W x 8 in H
Efficiency:	80 %
Gear Ratio:	50:1
Horsepower:	1 hp
Input Maximum Speed:	1750 rpm
Input Size:	0.63 in Dia
Input Type:	C-Face Quilled
Keyway Size:	3/16 x 3/32 in Input/3/8 x 3 in Output
Lubrication Type:	Polyglycol Oil
Material:	Cast Iron
Mounting Type:	Direct/Floor
Output Maximum Speed:	35 rpm
Output Size:	1-1/2 in ID
Output Type:	Hollow
Torque Rating:	51.14 in-lb Input/35 in-lb Output
