266 60/1 R WR 143TC 1.500 HUB

Name: 266 60/1 R WR 143TC 1.500 HUB
Brand: Hub City
SKU: 266 60/1 R WR 143TC 1.500 HUB
Availability: OutOfStock

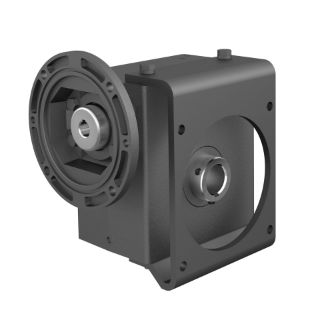

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0230-07752

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style R

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style R, Series: 260PCX, 60:1 Gear Ratio, 1.03 hp Input, C-Face Quill Input, Hollow Bore Output, 7/8 in Dia Input, 1-1/2 in Dia Output, 29.2 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1493 in-lb Output, 2.63 in Centre Distance, 66.8 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	2.63 in
Efficiency:	66.8 %
Gear Ratio:	60:1
Horsepower:	1.03 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	7/8 in Dia
Input Type:	C-Face Quill
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	29.2 rpm
Output Size:	1-1/2 in Dia
Output Type:	Hollow Bore
Series:	260PCX
Torque Rating:	1493 in-lb Output
