266 7.5/1 L WR 56C 1.438 HUB

Name: 266 7.5/1 L WR 56C 1.438 HUB
SKU: 266 7.5/1 L WR 56C 1.438 HUB
Availability: OutOfStock

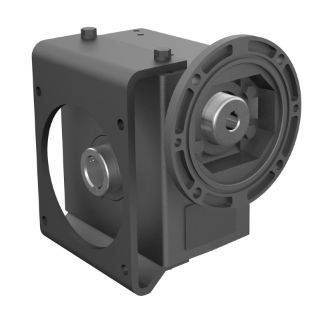

Actual Product May Vary From Image

Product Details

Manufacturer part number:

0230-07492

product.name:

266 7.5/1 L WR 56C 1.438 HUB

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style L

Description

Hub City® PowerCubeX® Worm Gear Reducer, Right Angle Single Reduction Style L, Series: 260PCX, 7.5:1 Gear Ratio, 5.73 hp Input, C-Face Quill Input, Hollow Bore Output, 5/8 in Dia Input, 1.438 in Dia Output, 233 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 1327 in-lb Output, 2.63 in Centre Distance, 85.8 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Conveyors and Conveying Equipment, Printing Equipment, Agriculture, Food Processing, Bottling Equipment, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Increased thermal capacity and increased efficiency
Alloy shafting
FKM seals

Specifications

Centre Distance:	2.63 in
Efficiency:	85.8 %
Gear Ratio:	7.5:1
Horsepower:	5.73 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	5/8 in Dia
Input Type:	C-Face Quill
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	233 rpm
Output Size:	1.438 in Dia
Output Type:	Hollow Bore
Series:	260PCX
Torque Rating:	1327 in-lb Output
