26725-202 LEV

Product Details

Manufacturer part number:
26725-202
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Leviton®

Description

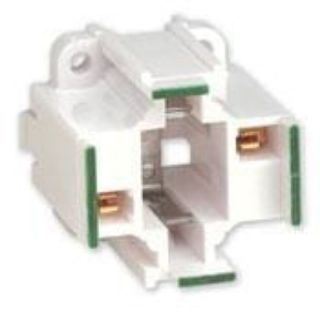

Leviton® Lampholder, 75 W Lamp, 600 VAC, Electronic Ballast, CFL Lamp, 10 mm Lamp, G24d-2 Bi-Pin Lamp Base, Push-In Terminal, Threaded Mounting, Snap-In Connection, Thermoplastic, Green, 1.312 in L Dimensions

Application

Commercial

Standards

UL File No. E-5833 | CSA File No. LR-1863, NOM 057

Features

  • "Smart" CFL lampholders are color coded for easy wattage identification
  • Bottom snap-in versions for easier panel assembly
  • Metal spring lamp retainer clip provides positive lamp retention and is more durable than plastic clips
  • Two wiring ports per contact speed harness wiring
  • Four screw holes for greater mounting flexibility
  • Wire routing options for top or bottom side of mounting panel for easier assembly
  • White thermoplastic body

Specifications

Ballast Type:Electronic
Color:Green
Connection Type:Quick-Connect
Country of Origin:MX
Dimensions:1.312 in L
Lamp Base Type:G24d-2 Bi-Pin
Lamp Size:10 mm
Lamp Type:CFL
Lamp Wattage:75 W
Material:Thermoplastic
Mounting Type:Snap-In
Terminal Type:Push-In
Voltage Rating:600 VAC
