26725-401 LEV

Product Details

Manufacturer part number:
26725-401
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Leviton®

Description

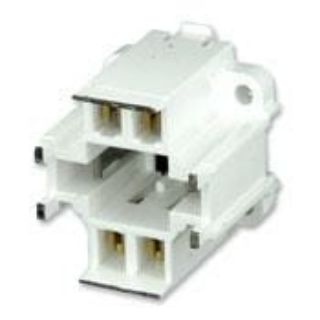

Leviton® Lampholder, 75 W Lamp, 600 VAC, Electronic Ballast, CFL Lamp, 10 mm Lamp, 4-Pin G24q-1 Lamp Base, Push-In Terminal, Screw Mounting, Snap-In Connection, Thermoplastic, White With Black, 1.32 in L Dimensions

Application

Commercial Applications

Standards

UL File No. E5833 | CSA File No. LR-1863 | NOM 057

Features

  • "Smart" CFL lampholders are color coded for easy wattage identification
  • Bottom snap-in versions for easier panel assembly
  • All 4-pin lampholders have internal rejection feature that prevents insertion of 2-pin lamps
  • Metal spring lamp retainer clip provides positive lamp retention and is more durable than plastic clips
  • Two wiring ports per contact speed harness wiring
  • Four screw holes for greater mounting flexibility
  • Wire routing options for top or bottom side of mounting panel for easier assembly
  • White thermoplastic body

Specifications

Ballast Type:Electronic
Color:Black/White
Connection Type:Quick-Connect
Country of Origin:MX
Dimensions:1.32 in L
Lamp Base Type:4-Pin G24q-1
Lamp Size:10 mm
Lamp Type:CFL
Lamp Wattage:75 W
Material:Thermoplastic
Mounting Type:Screw
Terminal Type:Push-In
Voltage Rating:600 VAC
