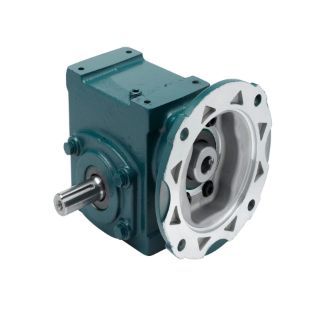

Actual Product May Vary From Image

26Q50LR56 DOD

Name: 26Q50LR56 DOD
Brand: Dodge
SKU: 26Q50LR56 DOD
Price: 1,554.82 USD
Availability: OutOfStock

26Q50LR56 TIGEAR-2 REDUCER

Manufacturer: Dodge

Manufacturer part number: 26Q50LR56

Estimated dates are contingent upon manufacturer stock.

Please login to see accurate availability

$1,554.82

Qty:

Product Details

Base to Output Center Height:	2.8700
Base to Output Center Height (Unit):	INCH
Case Size:	26
Center Distance:	2.6300
Center Distance (Unit):	INCH
Center to End of Shaft Distance:	5.6300
Center to End of Shaft Distance (Unit):	INCH
Gearbox Component Type:	Gearbox
Horsepower Rating Input:	1.3200
Horsepower Rating Input (Unit):	HORSEPOWER
Horsepower Rating Output:	0.9200
Horsepower Rating Output (Unit):	HORSEPOWER
Housing Material:	Cast Iron
Input Style:	Quill
Lubrication:	PAG, Standard Temperature
Motor Compatibility:	NEMA Motor, 56C Frame
Mounting Bolt Pattern Length:	6.3800
Mounting Bolt Pattern Length (Unit):	INCH
Mounting Bolt Pattern Width:	3.3800
Mounting Bolt Pattern Width (Unit):	INCH
Nominal Ratio:	50.0000
Output Shaft:	Double (Solid)
Output Shaft Center to Input Motor Mounting Face Distance:	5.4900
Output Shaft Center to Input Motor Mounting Face Distance (Unit):	INCH
Output Style:	Left,Right
Overhung Load:	1610
Overhung Load (Unit):	POUND_FORCE
Paint Type:	Standard
Rated Torque Output:	1662
Rated Torque Output (Unit):	INCH_POUND
Seal Type:	Single-Lip Contact
Shaft Diameter Output:	1.1250
Shaft Diameter Output (Unit):	INCH
Shaft Length Output:	2.6700
Shaft Length Output (Unit):	INCH
Suitable For Washdown:	No
Thermal Horsepower Rating:	1.7600
Thermal Horsepower Rating (Unit):	HORSEPOWER
