26W47H HWD

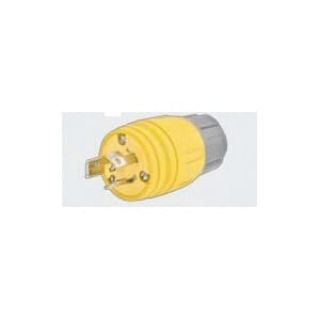

Picture of 26W47H HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
26W47H
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Watertight

Alternate Supplier #

Grainger - 5RVY0

Description

Wiring Device-Kellems Twist-Lock® Locking Plug, Watertight, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA L5-20, Industrial Grade, NEMA 4/4X/6/6P/IP65/IP66/IP67 Enclosure, 0.475 to 0.72 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Thermoplastic Elastomer, Yellow, 4.9 in L x 2.8 in H Dimensions

Application

Food and Beverage Processing, Outdoor Entertainment, Construction, Agriculture, Water Treatment, Municipal, Factory and Temporary Power

Standards

UL 498 | CSA C22.2 No. 42 | NEMA WD-1 | WD-6

Features

  • Resists chemicals
  • Exclusive triple by-pass sealing system
  • Corrosion-resistant nickel plated blades
  • Stainless steel captive assembly and body holding screws
  • 30 deg C max per UL498 at rated current temperature rise
  • Rated for current interruption per UL498
  • Ground-green, neutral-silver/white and Hot(s)-brass terminal identification
  • All exposed materials are UV stabilized
  • Clear polycarbonate terminal retainer
  • Steel chromate terminal and drive screws
  • #8 to 32 terminal screw size
  • Natural polypropylene ferrule and housing insert
  • Brass, nickel blades/contacts
  • Thermoplastic elastomer grommet
  • Gray PBT thermoplastic strain relief nut
  • Yellow PBT thermoplastic blade/contact carrier
  • 2500 VAC if rated 300V or less/3500 VAC if rated above 300V dielectric voltage
  • 12/3 SJ, 14/3 S to 10/3 S cord and terminal accomodation

Specifications

Amperage Rating:20 A
Color:Yellow
Cord Diameter:0.475 to 0.72 in
Country of Origin:US
Dimensions:4.9 in L x 2.8 in H
Enclosure:NEMA 4/4X/6/6P/IP65/IP66/IP67
Grade:Industrial
Material:Thermoplastic Elastomer
NEMA Rating:NEMA L5-20
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
