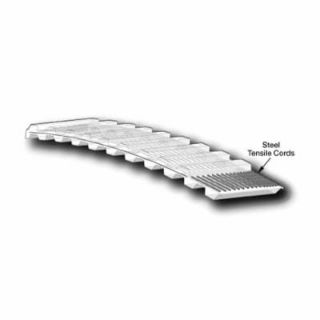

Actual Product May Vary From Image

270L100U GAT

Name: 270L100U GAT
Brand: Gates
SKU: 270L100U GAT
Price: 42.47 USD
Availability: OutOfStock

Synchro-Power™ Sleeves

Manufacturer: Gates

Manufacturer part number: 255L075U

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$42.47

Qty:

Product Details

Brand Name

Gates

Alternate Supplier #

77580069

Description

Gates Synchro-Power™ polyurethane belts are designed for long-lasting and energy-efficient performance on both power transmission and linear applications. They are available in both endless and open-end versions in various sizes, constructions and tooth designs, handling a wide range of loads, speeds and applications.

Features

Abrasion-resistant polyurethane body offers clean running systems without accumulation of debris. Synchro-Power endless belts and sleeves for power transmission are manufactured as truly endless synchronous belts with no joint. Pitch lengths available up to 2250 mm. Synchro-Power open-end belts for linear drives (rolls) are manufactured as open-end extruded belts. Roll lengths available up to 100 m. Modifcations include molded profiles, tensile cords, lamination with various backings, and FDA and USDA constructions. Exceptional rigidity, reduced tooth flexing and exceptional stability in the overall system with no lubrication required.

Specifications

Belt Back Side:	Smooth
Belt/Slab:	Belt
Color:	Blue
Cord Material:	Fiberglass
Country of Origin:	US
End:	Endless
GC Base Product:	Synchro-Power® Polyurethane Timing Belts - 3/8" Pitch (.375"/L)
Harmonized Tariff Code:	3926.90.5900
Length Pitch (in):	25.5
Length Pitch (mm):	648
Material:	Polyurethane
Max Temp (°C):	+80
Max Temp (°F):	+176
Min Temp (°C):	-30
Min Temp (°F):	-22
Number of Teeth:	68
Pitch (in):	0.375
Pitch (mm):	9.53
Proposition 65:	NO
Section:	L
Sided:	Single Sided
Standard Width:	YES
Stat Conductive:	No
Tooth Form:	Trapezoidal Design
Width (in):	0.75
Width (mm):	19
