273001 LIT

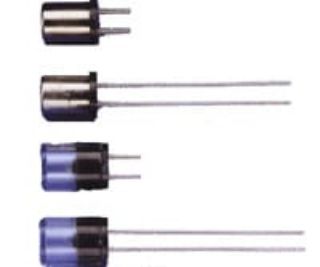

Picture of 273001 LIT
Actual Product May Vary From Image

Product Details

Manufacturer:
Littelfuse
Manufacturer part number:
273001
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Littelfuse®

Description

Developed originally for the U.S. Space Program, MICRO™ fuse provides reliability in a compact design. The MICRO™ fuse is available in plug-in or radial lead styles and a complete range of ampere ratings from 0.002 to 5 A to suit a wide variety of design needs.
Littelfuse® MICRO™ Fast Acting Fuse, Series: 273, Non-Indicating, 1 A, 125 VAC/VDC, 10 kA Interrupt, 2 to 5 s Response, Plug-In Terminal, Ryton® R-4, 0.25 in Dia x 0.35 in L Body

Application

For electronic equipment and appliances, printed circuit boards and similar equipment

Standards

RoHS Compliant | CSA 29862 | QPL FM02 | UR E10480 | PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer

Features

  • High breaking capacity
  • Clear cover option to view fuse element status
  • Plug-in with short leads option
  • -55 to 85 deg C operating temperature
  • 0.17 in radial lead
  • Mirror polished polycarbonate cap
  • 4 hr minimum at 100%, 2-to 5 sec maximum at 200% response time

Specifications

Amperage Rating:1 A
Body Size:0.25 in Dia x 0.35 in L
Country of Origin:MX
Indicating/Non-Indicating:Non-Indicating
Interrupt Rating:10 kA
Material:Ryton® R-4
Response Time:2 to 5 s
Series:273
Terminal Type:Plug-In
Voltage Rating:125 VAC/VDC

Products Specifications

Amperage Rating
1 A
Brand Name
Littelfuse
Type
Subminiature Plug-In Fuse
Voltage Rating
125 VAC
