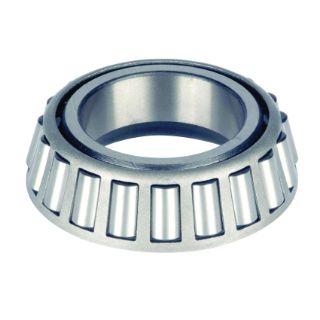

Actual Product May Vary From Image

2775 2 TKN

Name: 2775 2 TKN
Brand: Timken
SKU: 2775 2 TKN
Availability: OutOfStock

Timken® 2775-20024 2700 Single Tapered Roller Bearing Cone, 1.377 in Dia Bore, 1.01 in W Cone, 0.06 in Max Shaft Fillet Radius, 19500 lb Dynamic/23000 lb Static Load, For Use With Type TS Single Row Steel Tapered Roller Bearing

Manufacturer: Timken

Manufacturer part number: 2775-20024

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Timken®

Type

Single

Description

Timken® is the recognized global leader in tapered roller bearings. It has the most extensive offering in the market. With the ability to support high radial and axial loads, high-performance Timken® double row tapered roller bearing components are engineered to provide the greatest durability in the most compact space.

Timken® Tapered Roller Bearing Cone, Single, Series: 2700, 1.377 in Bore, 1.01 in Cone Width, 0.06 in Maximum Shaft Fillet Radius, For Use With: Type TS Single Row Steel Tapered Roller Bearing, 19500 lb Dynamic/23000 lb Static Load, Stamped Steel Cage, -65 to 250 deg F

Application

Vehicle Front Wheels, Differential and Pinion Configurations, Conveyor Rolls, Machine Tool Spindles, Trailer Wheels and General Purpose Applications

Standards

ABMA Class 2 | ANSI Standard

Features

Both rings should be replaced at the same time to maximize reliability and life

Specifications

Bore Diameter:	1.377 in
Cage Material:	Stamped Steel
Cone Width:	1.01 in
Load Capacity:	19500 lb Dynamic/23000 lb Static
Maximum Shaft Fillet Radius:	0.06 in
Series:	2700
Suitable For Use With:	Type TS Single Row Steel Tapered Roller Bearing
Temperature Rating:	-65 to 250 deg F
