Actual Product May Vary From Image

279-C00 LEV

Name: 279-C00 LEV
Brand: Leviton Manufacturing
SKU: 279-C00 LEV
Availability: OutOfStock

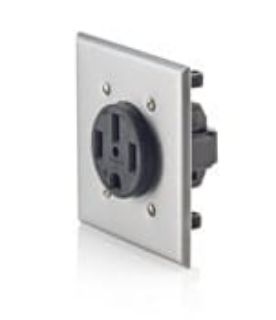

Leviton® Cheetah 279-C00 Straight Blade Receptacle, 125/250 VAC, 50 A, 3 Poles, 4 Wires, Stainless Steel

Manufacturer: Leviton Manufacturing

Manufacturer part number: 279-C00

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Description

Built of durable thermoplastic, Leviton Power Receptacles - come equipped with heavy-gauge, double-wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings.

Leviton® Cheetah Straight Blade Receptacle, 125/250 VAC, 50 A, 3 Poles, 4 Wires, NEMA 14-50R, Commercial Grade, -40 to 60 deg C, Thermoplastic, Stainless Steel, 2.44 in Dia x 2.22 in H

Standards

ANSI C-73 | CSA File 152105 | NEMA WD-6 | NOM 057 | UL 498 File E13399

Features

Flush mounting
Grounding
2000 V (min) dielectric strength
UL 94 V-2 flammability rating
Industrial grade
14 - 6 AWG

Specifications

Amperage Rating:	50 A
Color:	Stainless Steel
Country of Origin:	MX
Dimensions:	2.44 in Dia x 2.22 in H
Grade:	Commercial
Material:	Thermoplastic
NEMA Rating:	NEMA 14-50R
Number of Poles:	3
Number of Wires:	4
Temperature Rating:	-40 to 60 deg C
Voltage Rating:	125/250 VAC
