27W48 WOO

Name: 27W48 WOO
Brand: Molex (Woodhead)
SKU: 27W48 WOO
Price: 88.73 USD
Availability: OutOfStock

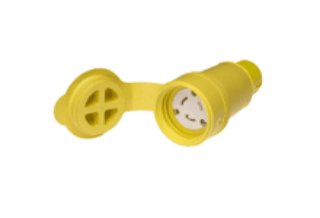

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex (Woodhead)

Manufacturer part number:

27W48

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

$88.73 / EA

Description

Brand Name

Woodhead®

Description

Woodhead® Watertite® wet location wiring devices are rated for high pressure hose-down application upto 1000 psi, the benchmark for the industry. The only devices made of NEo-TEX® paracril OZO rubber, yields ultimate performance within a wide temperature range, around many oils, chemicals and abrasive conditions. Additional features include: unique multiple ring seals that lock snugly protecting against moisture and contaminants; sturdy compression Type cord grips that provide 93 kg of pullout strength; and a protective-closure cap that seals the connector when it is not in use. Woodhead® Watertite® products are time-tested devices that professionals demand.

Woodhead® Watertite® Connector, Series: 130147, 250 VAC, 20 A, 2 Pole, 3 Wires, NEMA L6-20 Rating, IP67 Enclosure, 11/16 to 13/16 in Diameter Cord, -40 to 75 deg C, Screw/Wire Terminal, Rubber, Yellow

Application

For breweries, dairies, food and beverage, wastewater treatment and water treatment

Standards

UL File No. E10176 | CSA File No. LR6837

Features

Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down upto 1000 psi
Color coded 1/4 in terminal screws preset in open position, ready to wire
Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strands are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
Three piece strain relief seals cord without damaging the cord
Single receptacle
F3 3/4 in cord grip body size
Female connector
Nickel plated brass plug blades and connector contacts, NEoTEX® Paracril OZO rubber outer housing and grommet, stainless steel face screw nylon face insert brass wire saddle clamp, Lexan® receptacle cover plate and Closure caps
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise

Specifications

Amperage Rating:	20 A
Color:	Yellow
Cord Diameter:	11/16 to 13/16 in
Country of Origin:	MX
Enclosure:	IP67
Material:	Rubber
NEMA Rating:	NEMA L6-20
Number of Poles:	2
Number of Wires:	3
Series:	130147
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw/Wire
Voltage Rating:	250 VAC
