27X44X8CNB1W11 DIC

Product Details

Manufacturer:
Manufacturer part number:
27X44X8CNB1W11
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

TCM®

Type

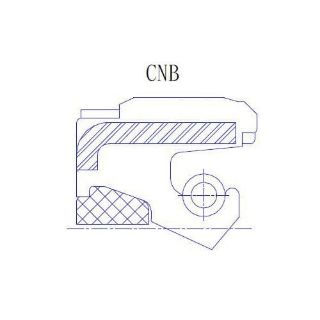

CNB

Description

Dichtomatik's standard shaft seals are designed to function in applications where the operating pressure is 0 to 7 psi. For applications where the operating pressure is above 7 psi, a pressure seal will need to be used. If a standard shaft seal were to be used in a pressure application, the seal would be deformed due to the pressure being applied to the flex section of the seal. This deformation would lead to an increase in the contact between the seal and the shaft causing an increase in temperature and shaft wear. For this reason, pressure seals are standard shaft seals with a specially modified flex section design. The design of the flex section is dependant upon the amount of pressure that is present in the application. Dichtomatik's N style pressure seals are designed to function in applications where the operating pressure is above 30 psi. N style pressure seals are designed so that the flex section of the primary sealing lip gets progressively shorter as the applications operating pressure increases.
TCM® Pressure Oil Seal, CNB, 1.063 in Inside Dia, 1.732 in Outside Dia, 0.315 in Width, Import

Application

Gearboxes, Pumpjacks, Pumping Units and Artificial Lift Systems

Standards

ISO 9001 Certified | UL Listed

Features

  • Rubber cover OD for improving OD sealing ability
  • 90 psi pressure rating

Specifications

Country of Origin:TW
Domestic/Import:Import
Inside Diameter:1.063 in
Outside Diameter:1.732 in
Width:0.315 in
