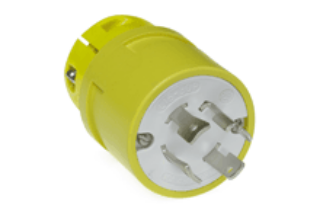

Actual Product May Vary From Image

2876 WOO

Name: 2876 WOO
Brand: Molex/Woodhead
SKU: 2876 WOO
Price: 65.19 USD
Availability: OutOfStock

Woodhead® Super-Safeway® 2876 130142 3-Phase Male Plug With Locking Blade, 480 VAC, 30 A, 3 Poles, 4 Wires, Yellow

Manufacturer: Molex/Woodhead

Manufacturer part number: 2876

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$65.19

Qty:

Product Details

Brand Name

Woodhead®

Type

3-Phase Male

Description

Woodhead® Super-Safeway® product are heavy duty industrial wiring device designed for abusive condition and dependable performance for application that demand the unmatched durability that rubber exclusively deliver. These rubberized industrial device are the only wiring device made of NEoTEX® paracril OZO rubber, a rubber construction that yield ultimate performance within a wide temperature range, around many oil and chemical and abrasive condition. Woodhead® Safeway® device are designed for use in rugged industrial environment. These safe, easy to wire and assemble, black and white nylon body product represent an economical option for tough, industrial duty application. Self-aligning blade provide positive mechanical and electrical contact, making engagement easier, particularly for higher current and high pole count device.

Woodhead® Super-Safeway® Plug, 3-Phase Male, Series: 130142, 480 VAC, 30 A, 3 Pole, 4 Wires, L16-30 NEMA Rating, Industrial Grade, 0.425 to 1.15 in Diameter Cord, -40 to 75 deg C, Screw/Wire Terminal, Rubber, Yellow

Application

Aircraft Construction/Airport, Construction Site, Facility Maintenance, Petrochemical, Pulp and Paper Manufacturing Application

Standards

CSA LR6837 | UL E10176

Features

NEoTEX® paracril OZO rubber body yield the best performance for abrasion, chemical exposure and temperature extreme within the Super-Safeway® offering
Rugged nylon body within the Safeway® offering provide exceptional durability and performance
Color coded 1/4 in terminal screw preset in open position, ready to wire
Wire screw terminal are tri-drive to be used with straight blade, Phillips® and square drive screw driver
Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strand are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
Two piece cord clamp strain relief include tri-drive screw to firmly secure the cord
Nickel plated brass plug blade and connector contact
NEoTEX® paracril OZO rubber Super-Safeway® outer housing
Stainless steel face screw
Nylon face insert
Brass wire saddle clamp
Zinc-plated steel cord clamp screw
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%

Specifications

Amperage Rating:	30 A
Color:	Yellow
Cord Diameter:	0.425 to 1.15 in
Country of Origin:	MX
Grade:	Industrial
Material:	Rubber
NEMA Rating:	L16-30
Number of Poles:	3
Number of Wires:	4
Series:	130142
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw/Wire
Voltage Rating:	480 VAC
