Actual Product May Vary From Image

28H100SDS BRN

Name: 28H100SDS BRN
Brand: Regal Rexnord
SKU: 28H100SDS BRN
Price: 222.05 USD
Availability: OutOfStock

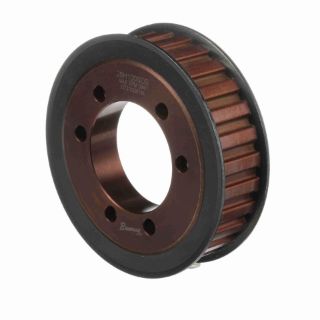

Browning® Gearbelt® 3513637 Solid Type DF Synchronous Timing Pulley With Flange, 1/2 to 2 in QD® Bore, 4.402 in OD, 28 Grooves, 4.456 in Dia Pitch, 1-5/16 in W Face

Manufacturer: Regal Rexnord

Manufacturer part number: 3513637

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$222.05

Qty:

Product Details

Brand Name

Browning®

Type

Solid Type DF

Description

Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.

Browning® Gearbelt® Synchronous Timing Pulley, Solid Type DF, QD® Bore, 1/2 to 2 in Bore Dia, 4.402 in Outside Dia, 4.456 in, 28 Grooves, 1/2 in Pitch, 1-5/16 in Face Width, 4-11/16 in Flange Dia, SDS Bushing, 1.54375 in Overall Length, For Use With: 1 in W Type H100 Belt

Application

Agriculture, Forestry, Packaging Machinery and Unit Handling Industries

Features

Constant speed, no slip, no creep, minimum backlash, because of the positive grip of the belt teeth with pulley grooves
High modulus strength member, needs minimum take-up
Freedom from initial belt tension, reduces bearing loads, increases life
Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
Less heat, because Gearbelt® drives generate virtually no friction
No lubrication required
Wide load capacity range
Wide belt speed range

Specifications

Bore Diameter:	1/2 to 2 in
Bore Type:	QD®
Bushing Type:	SDS
Country of Origin:	US
Face Width:	1-5/16 in
Flange Diameter:	4-11/16 in
Number of Grooves:	28
Outside Diameter:	4.402 in
Overall Length:	1.54375 in
Pitch:	1/2 in
Pitch Diameter:	4.456 in
Suitable For Use With:	1 in W Type H100 Belt
