Actual Product May Vary From Image

28W48 WOO

Name: 28W48 WOO
Brand: Molex/Woodhead
SKU: 28W48 WOO
Price: 70.25 USD
Availability: OutOfStock

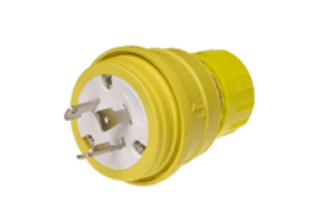

Woodhead® Watertite® 28W48 130147 Male Connection Extra Hard Locking Plug With Locking Blade, 250 VAC, 30 A, 2 Poles, 3 Wires, Yellow

Manufacturer: Molex/Woodhead

Manufacturer part number: 28W48

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$70.25

Qty:

Product Details

Brand Name

Woodhead®

Type

Male Connection Extra Hard

Description

Woodhead® Watertight wet-location wiring devices are rated for high-pressure hose-down application upto 1,000 psi, the benchmark for the industry. The only devices made of NEo-TEX® Paracril OZO rubber, yields ultimate performance within a wide temperature range, around many oils, chemicals and abrasive conditions. Additional features include: unique multiple ring seals that lock snugly protecting against moisture and contaminants; sturdy compression type cord grips that provide high pull-out strength; and a protective-closure cap that seals the connector when it is not in use. Woodhead® Watertight products are time-tested devices that professionals demand.

Woodhead® Watertite® Locking Plug, Male Connection Extra Hard, Series: 130147, 250 VAC, 30 A, 2 Pole, 3 Wires, NEMA L6-30 Rating, IP67 Enclosure, 1 in Diameter Cord, -40 to 75 deg C, Screw/Wire Terminal, Rubber, Yellow

Application

Breweries, Dairies, Food and Beverage, Wastewater Treatment, Water Treatment and Wet Locations Applications

Standards

UL Listed | CSA Certified

Features

Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down upto 1000 psi
Color coded 1/4 in terminal screws pre set in open position, ready to wire
Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strands are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
Three piece strain relief seals cord without damaging the cord
Nickel plated brass plug blades and connector contacts
NEoTEX® Paracril OZO rubber outer housing and grommet
Stainless steel face screw
Nylon face insert
Brass wire saddle clamp
F4 body 1 in cord grip
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Lexan receptacle coverplate and closure caps
Recommended for outdoor application

Specifications

Amperage Rating:	30 A
Color:	Yellow
Cord Diameter:	1 in
Country of Origin:	MX
Enclosure:	IP67
Material:	Rubber
NEMA Rating:	NEMA L6-30
Number of Poles:	2
Number of Wires:	3
Series:	130147
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw/Wire
Voltage Rating:	250 VAC
