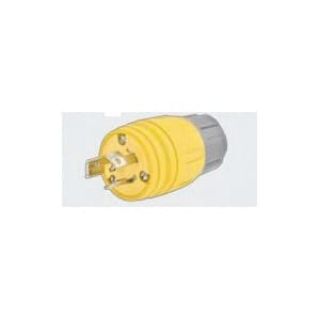

Actual Product May Vary From Image

28W74H HWD

Name: 28W74H HWD
Brand: Hubbell Wiring Device-Kellems
SKU: 28W74H HWD
Availability: OutOfStock

Wiring Device-Kellems Twist-Lock® 28W74H Grounding Male Watertight Locking Plug, 125/250 VAC, 30 A, 2 Poles, 3 Wires, Yellow

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: 28W74H

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

Watertight

Alternate Supplier #

Grainger - 5RVZ7

Description

Wiring Device-Kellems Twist-Lock® Locking Plug, Grounding Male Watertight, 125/250 VAC, 30 A, 2 Poles, 3 Wires, NEMA L15-30P, Industrial Grade, NEMA 4/4X/6/6P/IP65/IP66/IP67 Enclosure, 0.64 to 0.93 in Cord Dia, -40 to 60 deg C, Screw Terminal, TPE, Yellow, 4.9 in L x 2.8 in H

Application

Outdoor Entertainment, Construction, Agriculture, Water Treatment, Municipal, Factory, Temporary Power, Food and Beverage Processing Applications

Standards

UL 498 | CSA C22.2 No. 42 | NEMA WD1/WD6 | ANSI Specified

Features

Exclusive triple bypass sealing system
Corrosion resistant nickel plated blades
Stainless steel captive assembly and body holding screws
30 deg C maximum per UL 498 at rated current temperature rise
Rated for current interruption per UL 498
Ground green, neutral silver/white and Hot(s) brass terminal identification
All exposed materials are UV stabilized
Clear polycarbonate terminal retainer
Steel chromate terminal and drive screws
#8-32 terminal screw
Natural polypropylene ferrule and housing insert
Brass, nickel blades/contacts
Thermoplastic elastomer grommet
Gray PBT thermoplastic strain relief nut
Yellow PBT thermoplastic blade/contact carrier
2500 VAC if rated 300 VAC or less/3500 VAC if rated above 300 VAC dielectric voltage
12/4 S to 8/4 S, 6/4 MSHA cord and terminal accommodation

Specifications

Amperage Rating:	30 A
Color:	Yellow
Cord Diameter:	0.64 to 0.93 in
Country of Origin:	US
Dimensions:	4.9 in L x 2.8 in H
Enclosure:	NEMA 4/4X/6/6P/IP65/IP66/IP67
Grade:	Industrial
Material:	Thermoplastic Elastomer
NEMA Rating:	NEMA L14-30
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Screw
Voltage Rating:	125/250 VAC
