28W75 WOO

Name: 28W75 WOO
Brand: Molex/Woodhead
SKU: 28W75 WOO
Price: 89.34 USD
Availability: InStock

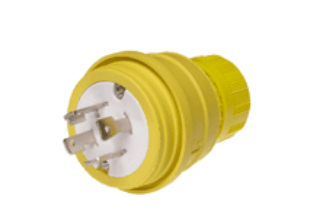

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex/Woodhead

Manufacturer part number:

28W75

product.name:

28W75 WOO

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

$89.34 / EA

Description

Brand Name

Woodhead®

Type

3-Phase

Description

Woodhead Watertite wet-location wiring devices are rated for high pressure hose-down application up to 1,000 psi, the benchmark for the industry. The only devices made of NEoTEX® Paracril OZO rubber, yields ultimate performance within a wide temperature range, around many oils, chemicals and abrasive conditions. Additional features include: unique multiple ring seals that lock snugly protecting against moisture and contaminants; sturdy compression type cord grips that provide 93.0kg (205 lbs) of pull-out strength; and a protective-closure cap that seals the connector when it is not in use. Woodhead Watertite products are time-tested devices that professionals demand.

Woodhead®, 28W75, Plug, 3-Phase, Series: 130147, 250 VAC, 30 A, 3 Pole, 4 Wires, L15-30 NEMA Rating, Industrial Grade, NEMA 1/3/4/4X/5/6/6P/12/IP67 Enclosure, 0.687 to 0.812 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Rubber, Yellow

Application

For wet location

Standards

CSA LR6837 | NSF/ANSI/3-A 14159-1 | UL E10176

Features

Multiple seal plug or connector interface keep out contaminant-resistant vapor and water from high pressure washdown up to 1000 psi
Color coded 1/4 in terminal screw preset in open position, ready to wire
Wire screw terminal are tri-drive to be used with straight blade, Phillips® and square drive screw driver
Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strand are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
Three piece strain relief seal cord without damaging the cord
Multiple seal plug/connector interface keeps out contaminants; resists vapor and water from high pressure wash down up to 1000psi
Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers
NEoTEX® Paracril OZO rubber outer housing and grommet
Nickel-plated brass plug blades and connector contacts
Stainless steel face screws
Nylon face insert
Brass wire saddle clamp
Lexan receptacle cover plate and closure caps
F4 1 in cord grip body size
Male plug

Specifications

Amperage Rating:	30 A
Color:	Yellow
Cord Diameter:	0.687 to 0.812 in
Country of Origin:	MX
Enclosure:	NEMA 1/3/4/4X/5/6/6P/12/IP67
Grade:	Industrial
Material:	Rubber
NEMA Rating:	L15-30
Number of Poles:	3
Number of Wires:	4
Series:	130147
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	250 VAC
