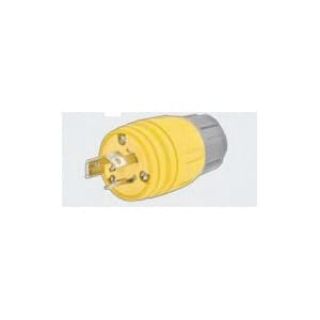

Actual Product May Vary From Image

28W78H HWD

Name: 28W78H HWD
Brand: Hubbell Wiring Device-Kellems
SKU: 28W78H HWD
Availability: OutOfStock

Wiring Device-Kellems Twist-Lock® 28W78H Watertight Locking Plug, 120/208 VAC, 30 A, 4 Poles, 4 Wires, Yellow

Manufacturer: Hubbell Wiring Device-Kellems

Manufacturer part number: 28W78H

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Wiring Device-Kellems

Type

Watertight

Alternate Supplier #

Grainger - 5RWF8

Description

Wiring Device-Kellems Twist-Lock® Locking Plug, Watertight, 120/208 VAC, 30 A, 4 Pole, 4 Wires, NEMA L18-30, Commercial/Industrial Grade, NEMA 4/4X/6/6P/IP65/IP66/IP67 Enclosure, 0.64 to 0.93 in Cord Dia, -40 to 60 deg C, Screw Terminal, Thermoplastic Elastomer, Yellow, 2.80 in Dia x 4.90 in L

Application

Food and Beverage Processing, Outdoor Entertainment, Construction, Agriculture, Water Treatment, Municipal, Factory and Temporary Power Applications

Standards

UL 498 | CSA C22.2 No. 42 | NEMA WD1/WD6 | ANSI Specified

Features

Resists chemicals
Exclusive triple by-pass sealing system
Corrosion-resistant nickel plated blades
Stainless steel captive assembly and body holding screws
30 deg C max per UL498 at rated current temperature rise
Rated for current interruption per UL498
Ground-green, neutral-silver/white and Hot(s)-brass terminal identification
All exposed materials are UV stabilized
Clear polycarbonate terminal retainer
Steel chromate terminal and drive screws
#8-32 terminal screw
Natural polypropylene ferrule and housing insert
Brass, nickel blades/contacts
Thermoplastic elastomer grommet
Gray PBT thermoplastic strain relief nut
Yellow PBT thermoplastic blade/contact carrier
2500 VAC if rated 300 VAC or less/3500 VAC if rated above 300 VAC dielectric voltage
12/4 S to 8/4 S, 6/4 MSHA cord and terminal accommodation

Specifications

Amperage Rating:	30 A
Color:	Yellow
Cord Diameter:	0.64 to 0.93 in
Country of Origin:	US
Dimensions:	2.8 in Dia x 4.9 in L
Enclosure:	NEMA 4/4X/6/6P/IP65/IP66/IP67
Grade:	Commercial/Industrial
Material:	Thermoplastic Elastomer
NEMA Rating:	NEMA L18-30
Number of Poles:	4
Number of Wires:	4
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Screw
Voltage Rating:	120/208 VAC
