Actual Product May Vary From Image

28W82 WOO

Name: 28W82 WOO
Brand: Molex/Woodhead
SKU: 28W82 WOO
Price: 107.40 USD
Availability: OutOfStock

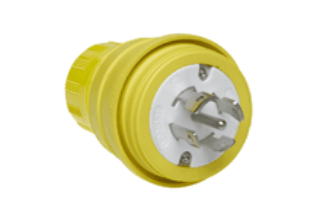

Woodhead® Watertite® 28W82 130147 3-Phase Male Plug With Locking Blade, 480 VAC, 30 A, 4 Poles, 5 Wires, Yellow

Manufacturer: Molex/Woodhead

Manufacturer part number: 28W82

Availability: Expected Leadtime 12 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$107.40

Qty:

Product Details

Brand Name

Woodhead®

Type

3-Phase Male

Description

Woodhead® Watertite® wet location wiring device are rated for high pressure hose down application up to 1000 psi, the benchmark for the industry. The only device made of NEoTEX® paracril OZO rubber, yield ultimate performance within a wide temperature range, around many oil, chemical and abrasive condition. Additional feature include - unique multiple ring seal that lock snugly protecting against moisture and contaminant, sturdy compression type cord grip that provide high pull out strength and a protective closure cap that seal the connector when it is not in use. Woodhead® Watertite® product are time tested device that professional demand.

Woodhead® Watertite® Plug, 3-Phase Male, Series: 130147, 480 VAC, 30 A, 4 Pole, 5 Wires, L22-30 NEMA Rating, IP67 Enclosure, 1 in Diameter Cord, -40 to 75 deg C, Screw/Wire Terminal, Rubber, Yellow

Application

Breweries, Dairies, Food and Beverage, Wastewater Treatment, Water Treatment and Wet Location Application

Standards

CSA Certified | UL Listed

Features

Multiple seal plug or connector interface keep out contaminant-resistant vapor and water from high pressure washdown up to 1000 psi
Color coded 1/4 in terminal screw preset in open position, ready to wire
Wire screw terminal are tri-drive to be used with straight blade, Phillips® and square drive screw driver
Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strand are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
Three piece strain relief seal cord without damaging the cord
Nickel plated brass plug blade and connector contact
NEoTEX® paracril OZO rubber outer housing and grommet
Stainless steel face screw
Nylon face insert
Brass wire saddle clamp
F4 1 in cord grip body size
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Lexan receptacle cover plate and closure cap

Specifications

Amperage Rating:	30 A
Color:	Yellow
Cord Diameter:	1 in
Country of Origin:	MX
Enclosure:	IP67
Material:	Rubber
NEMA Rating:	L22-30
Number of Poles:	4
Number of Wires:	5
Series:	130147
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw/Wire
Voltage Rating:	480 VAC
