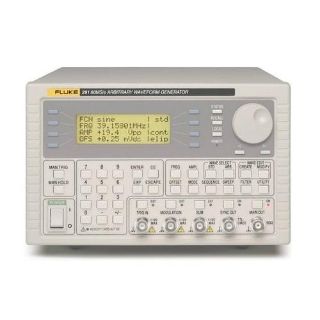

Actual Product May Vary From Image

291-U 115V FLU

Name: 291-U 115V FLU
Brand: Fluke
SKU: 291-U 115V FLU
Availability: OutOfStock

Fluke® 291-U115V 290 Universal Waveform Generator, 40 MHz, Linear/Logarithmic/Triggered/Continuous Sweep, 1 to 40 MHz Sweep, 1 ms to 999 s, 20 Character x 4 Row Alphanumeric LCD Display

Manufacturer: Fluke

Manufacturer part number: 291-U115V

Availability: Ships in 6-8 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Fluke®

Type

Universal

Description

These universal waveform generators combine many generators in one instrument. Their extensive signal simulation capabilities include arbitrary waveforms, function generator, pulse/pulse train generator, sweep generator, trigger generator, tone generator and amplitude modulation source.

Fluke® Waveform Generator, Universal, Series: 290, 40 MHz Frequency, 50 Ohm Impedance, Linear/Logarithmic/Triggered/Continuous Sweep, 1 to 40 MHz Sweep, 1 ms to 999 s Sweep, 20 Character x 4 Row Alphanumeric LCD Display, 110 to 120 VAC, 100 VAC, 50/60 Hz, 400 Hz Power Source, 335 mm Length, 212 mm Width, 130 mm Depth

Standards

EN61010-1 | EN61326

Features

100 MS/s 12-bit arbitrary waveform capability
1 M point waveform memory
40 MHz function generator capabilities using DDS (50 MHz for square waves)
Waveform sequencing with up to 1024 segments
Unlimited waveform storage using CF® memory card
Waveform Manager plus for windows software
USB interface in addition to RS-232 and GPIB

Specifications

Depth:	130 mm
Display Type:	20 Character x 4 Row Alphanumeric LCD
Frequency Rating:	40 MHz
Impedance:	50 Ohm
Length:	335 mm
Power Source:	110 to 120 VAC, 100 VAC, 50/60 Hz, 400 Hz
Series:	290
Sweep Range:	1 to 40 MHz
Sweep Rate:	1 ms to 999 s
Sweep Type:	Linear/Logarithmic/Triggered/Continuous
Width:	212 mm
