Actual Product May Vary From Image

2914 INA

Name: 2914 INA
Brand: INA
SKU: 2914 INA
Availability: OutOfStock

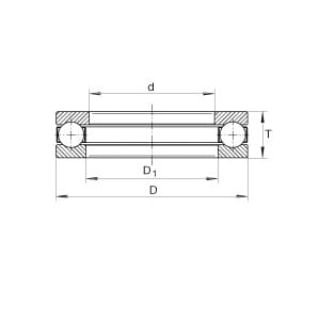

INA 2914 Axial Deep Groove Ball Bearing, 2.756 in Dia Bore, 3.74 in OD, 1 Rows, 0.787 in W, 10200 lb Dynamic/27000 lb Static Load

Manufacturer: INA

Manufacturer part number: 2914

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

INA

Description

INA Axial Deep Groove Ball Bearing, Series: 29 Series, 2.756 in Bore Dia, 3.74 in Outside Dia, 1 Rows, 0.787 in Width, Separable Face, Single Thrust Direction, 10200 lb Dynamic/27000 lb Static, Steel Bearing, 2400 rpm Maximum

Features

Light cross section
Grooved race
Single race
Separable axial contact
Speed limit shown is for oil lubrication

Specifications

Bearing Material:	Steel
Bore Diameter:	2.756 in
Face Type:	Separable
Load Capacity:	10200 lb Dynamic/27000 lb Static
Maximum Speed:	2400 rpm
Number of Rows:	1
Outside Diameter:	3.74 in
Series:	29 Series
Thrust Direction:	Single
Width:	0.787 in
