2923RT RAC

Product Details

Manufacturer:
Manufacturer part number:
2923RT
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.

Description

Brand Name

RACO®

Type

Compression Raintight

Alternate Supplier #

Grainger - 52AU79
Fastenal - 0728906

Description

When you need to couple, connect, fasten, or ground conduit or cables, RACO® fittings are your best answer. Where applicable, RACO® products are engineered in accordance with the standards established by Underwriters' Laboratories (UL). Most products are listed by UL and also certified by the Canadian Standards Association (CSA). Dimensional data listed in this catalog is intended for general reference with broad tolerance limits.

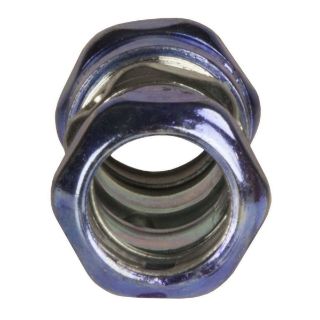

RACO® Conduit Coupling, Compression Raintight, 3/4 in, For Use With: EMT Conduit, Steel, Silver, Electro-Plated Zinc, 1.38 in OD x 2.15 in L

Application

Used in wet locations to couple two ends of EMT conduit, electrical applications

Standards

cULus 514B | UL File No. E195970 | C22.2 No. 18

Features

  • All steel construction insures mechanical protection for the raceway, raintight
  • All fittings are marked "Wet Locations" to allow inspecting authorities to immediately determine that the installation is up to code
  • No need to disassemble the fitting prior to installation
  • Fittings are designed so that when they come out of the carton they can be installed directly on the conduit
  • No need to waste time loosing compression nuts
  • No need for special tools to install properly
  • No need for a torque wrench to insure proper installation
  • RACO® raintight steel EMT Compression fittings have been designed to comply with the new U.L
  • Raintight test requirements and to comply with the requirements of the 2008 NEC 358.42 and 314.15

Specifications

Color:Silver
Country of Origin:CN
Dimensions:1.38 in OD x 2.15 in L
Finish:Electro-Plated Zinc
Material:Steel
Size:3/4 in
Suitable For Use With:EMT Conduit
