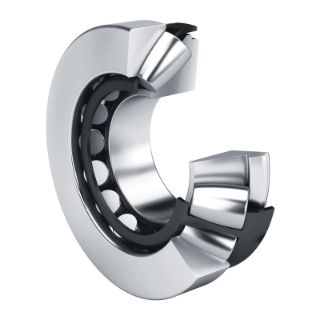

Picture of 29456-E1-XL FAG
Actual Product May Vary From Image

29456-E1-XL FAG

FAG 29456-E1-XL Axial Spherical Roller Bearing, 280 mm Dia Bore, 520 mm OD, 1 Row, 145 mm W, 15800000 N Load
Manufacturer: INA
Manufacturer part number: 29456-E1-XL
Availability: Ships in 3-5 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$29,264.09

Product Details

Brand Name

FAG

Description

Axial spherical roller bearings are single-row roller bearings with an angular adjustment facility. They comprise solid shaft and housing locating washers and asymmetrical barrel rollers with cages. The cage holds the roller and cage assembly and the shaft locating washer together. The bearings can be dismantled. As a result, the bearing components can be fitted separately.
FAG Axial Spherical Roller Bearing, Series: 294-E1, 280 mm Bore, 520 mm OD, 1 Rows, 145 mm Width, Single Thrust Direction, 15800000 N Load, 1230 rpm Maximum, -30 to 200 deg C

Features

  • Bearing arrangements are subjected to high and very high axial loads
  • Dynamic or static misalignments of the shaft relative to the housing, or deflections of the shaft, must be compensated by the bearing under axial loads
  • Radial loads occur in addition to axial forces
  • A relatively high speed suitability is required in addition to a high load carrying capacity
  • High shock type loads must be supported
  • Bearing parts are to be mounted separately
  • 5200000 N dynamic/15800000 N static
  • X-life design
  • Sheet steel cage

Specifications

Bore Diameter:280 mm
Country of Origin:DE
Load Capacity:15800000 N
Maximum Speed:1230 rpm
Number of Rows:1
Outside Diameter:520 mm
Series:294-E1
Temperature Rating:-30 to 200 deg C
Thrust Direction:Single
Width:145 mm
