29W48 WOO

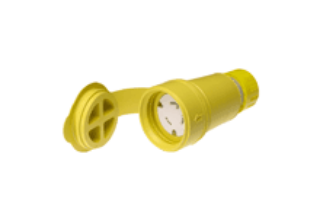

Picture of 29W48 WOO
Actual Product May Vary From Image

Product Details

Manufacturer:
Molex/Woodhead
Manufacturer part number:
29W48
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$138.42 / EA

Description

Brand Name

Woodhead®

Description

Woodhead® Watertite® Female Connector, Series: 130147, 250 VAC, 30 A, 2 Pole, 3 Wires, NEMA L6-30 Rating, IP67 Enclosure, Yellow

Standards

CSA File No. LR6837 | UL File No. E10176

Features

  • Single receptacle
  • F4 1 in cord grip body
  • Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down upto 1000 psi
  • Color coded 1/4 in terminal screws preset in open position, ready to wire
  • Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
  • Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
  • Transparent wiring guide to verify all wire strands are in place before securing wire
  • Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
  • Three piece strain relief seals cord without damaging the cord

Specifications

Amperage Rating:30 A
Color:Yellow
Country of Origin:MX
Enclosure:IP67
NEMA Rating:NEMA L6-30
Number of Poles:2
Number of Wires:3
Series:130147
Voltage Rating:250 VAC
