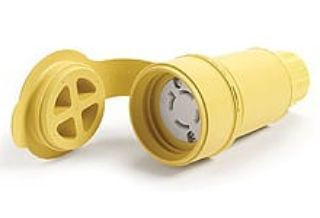

Actual Product May Vary From Image

29W74 WOO

Name: 29W74 WOO
Brand: Molex/Woodhead
SKU: 29W74 WOO
Price: 153.18 USD
Availability: OutOfStock

Woodhead® Watertite® 29W74 130147 Female Connector With Locking Blade, 250 VAC, 30 A, 3 Poles, 4 Wires, Yellow

Manufacturer: Molex/Woodhead

Manufacturer part number: 29W74

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$153.18

Qty:

Product Details

Brand Name

Woodhead®

Description

Woodhead® Watertite® Female Connector, Series: 130147, 250 VAC, 30 A, 3 Pole, 4 Wires, NEMA L14-30 Rating, IP67 Enclosure, -40 to 75 deg C, Yellow

Standards

CSA File No. LR6837 | UL File No. E10176

Features

Single receptacle
F4 1 in cord grip body
Multiple seal plug/connector interface keeps out contaminants, resists vapor and water from high pressure wash down upto 1000 psi
Color coded 1/4 in terminal screws preset in open position, ready to wire
Wire screw terminals are tri-drive to be used with straight blade, Phillips® and square drive screw drivers
Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strands are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
Three piece strain relief seals cord without damaging the cord

Specifications

Amperage Rating:	30 A
Color:	Yellow
Country of Origin:	MX
Enclosure:	IP67
NEMA Rating:	NEMA L14-30
Number of Poles:	3
Number of Wires:	4
Series:	130147
Temperature Rating:	-40 to 75 deg C
Voltage Rating:	250 VAC
