Actual Product May Vary From Image

2B86SK BRN

Name: 2B86SK BRN
Brand: Regal Rexnord
SKU: 2B86SK BRN
Price: 217.56 USD
Availability: OutOfStock

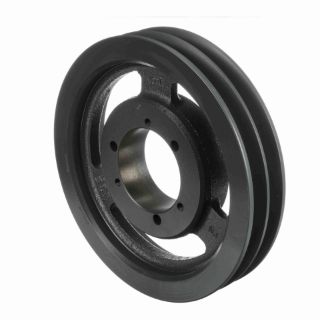

Browning® 1004340 Type D3 Multiple Sheave, 1/2 to 2-5/8 in QD® Bore, 8.88 in OD, 2 Grooves, 8.4 in (A)/8.9 in (B) Dia Pitch, 1-3/4 in W Face

Manufacturer: Regal Rexnord

Manufacturer part number: 1004340

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$217.56

Qty:

Product Details

Brand Name

Browning®

Type

Type D3

Description

Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® Multiple Sheave, Type D3, QD® Bore, 1/2 to 2-5/8 in Bore Dia, 8.88 in Outside Dia, 8.4 in (A)/8.9 in (B), 2 Grooves, 1-3/4 in Face Width, 21/32 in Hub Projection, SK Bushing, 2-13/32 in Overall Length, For Use With: Gripbelt® A and B Cross Section Belts, Cast Iron

Application

Aerospace, Aggregates. Mining and Cement, Alternative Energy, Food and Beverage, Forest Products, Grain, HVAC, Marine, Oil and Gas, Petrochemical, Plastics, Power Generation, Primary Metals, Pulp and Paper Industries

Features

Combination groove all Browning® B sheaves permit the running of A and B belts to be run in them
Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible

Specifications

Bore Diameter:	1/2 to 2-5/8 in
Bore Type:	QD®
Bushing Type:	SK
Country of Origin:	MX
Face Width:	1-3/4 in
Hub Projection:	21/32 in
Material:	Cast Iron
Number of Grooves:	2
Outside Diameter:	8.88 in
Overall Length:	2-13/32 in
Pitch Diameter:	8.4 in (A)/8.9 in (B)
Suitable For Use With:	Gripbelt® A and B Cross Section Belts
