2DA1200AL24 THO

Name: 2DA1200AL24 THO
Brand: Thomson Industries
SKU: 2DA1200AL24 THO
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Thomson Industries

Manufacturer part number:

2DA1200AL24

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Thomson®

Type

Continuously Supported

Description

The RoundRail™ advantage, the inherent self-aligning-in-all-directions design, allows for ultra smooth travel when mounted on wider tolerance prepared surfaces. The self-aligning design of the Super Smart Ball Bushing® bearings allow for more deviation in the flatness of the mounting surface which can dramatically reduce the installed cost of the linear guide. Additionally, this performance proven linear guide is available in corrosion resistant options including chrome plated or stainless steel shafting and corrosion resistant bearings.

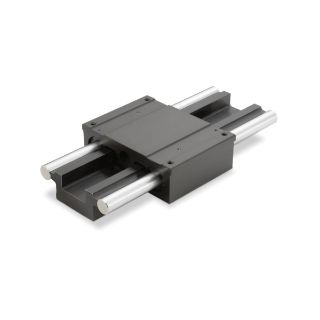

Thomson® RoundRail™ Linear Guide, Continuously Supported, Series: 2DA, 3/4 in Diameter Nominal, 24 in Linear Guide Length, 19-1/2 in Stroke Length, DSRA End Support, 3200 lb Dynamic Load, 0.34 in Mounting Hole, Black Anodized Aluminum Alloy Support, 6.1 in W x 2.125 in H Dimensions

Application

Machine Tools, Packaging Machinery, Automotive Assembly, Semiconductor, Medical and Food Processing Equipments

Features

Low profile, high loads in all directions and easy to install
This performance proven linear guide has an extremely low profile and features external rails with maximum bearing spacing
This provides the user with high pitch, yaw and roll moment capability, the load capacity is the same when mounted in the inverted position
The inherent self-aligning design of the Super Smart Ball Bushing® bearings allow for more deviation in the flatness of the mounting surface, this can dramatically reduce the installed cost of the linear guide
The base extrusion has a reference edge for registration in your machine, unlimited travel lengths can be realized by combining base and shaft segments
The shafts and bases are staggered to allow keying of the subsequent stage
For continuously supported applications when rigidity is required
Adaptable to any drive system
Dual shaft rail fully supported system with integrated carriage
Narrow style carriage
Pre-aligned and preassembled for immediate use
Designed for medium to heavy loads

Includes

(1) Dual LinearRaceÂ® Shaft Rail Assembly and (1) Integrated Horizontal Carriage with 4 Open Type Super Smart Ball BushingÂ® Bearings

Specifications

Country of Origin:	MX
Dimensions:	6.1 in W x 2.125 in H
End Support Type:	DSRA
Linear Guide Length:	24 in
Load Capacity:	3200 lb Dynamic
Mounting Hole Size:	0.34 in
Nominal Diameter:	3/4 in
Series:	2DA
Stroke Length:	19-1/2 in
Support Material:	Black Anodized Aluminum Alloy
