Actual Product May Vary From Image

2F3V28X7/8 BRN

Name: 2F3V28X7/8 BRN
Brand: Regal Rexnord
SKU: 2F3V28X7/8 BRN
Availability: OutOfStock

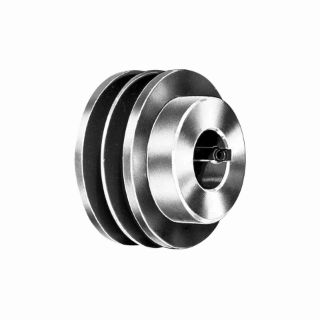

Browning® 1059534 Type F Multiple Sheave, 0.88 to 0.875 in Finished Bore, 2.8 in OD, 2 Grooves, 2-3/4 in Dia Pitch, 1-3/32 in W Face

Manufacturer: Regal Rexnord

Manufacturer part number: 1059534

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Browning®

Type

Type F

Description

Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® Multiple Sheave, Type F, Finished Bore, 0.88 to 0.875 in Bore, 2.8 in OD, 2-3/4 in Pitch Diameter, 2 Grooves, 1-3/32 in Face Width, 1-7/8 in Diameter Hub, 15/32 in Hub Projection, 1-9/16 in Overall Length, For Use With: GripBelt® 3V Cross Section V-Belt, Cast Iron

Application

Aggregate, Cement, Agriculture, Coal Power Generation, Forestry, HVAC, Minerals, Mining, Pulp, Paper and Unit Handling Industries

Standards

ABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards

Features

All sheaves are statically balanced to assure smooth and vibration free performance
Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible

Includes

3/16 x 3/32 in Keyseats and (1) Hollow Head Setscrews

Specifications

Bore Diameter:	0.88 to 0.875 in
Bore Type:	Finished
Country of Origin:	MX
Face Width:	1-3/32 in
Hub Diameter:	1-7/8 in
Hub Projection:	15/32 in
Material:	Cast Iron
Number of Grooves:	2
Outside Diameter:	2.8 in
Overall Length:	1-9/16 in
Pitch Diameter:	2-3/4 in
Suitable For Use With:	GripBelt® 3V Cross Section V-Belt
